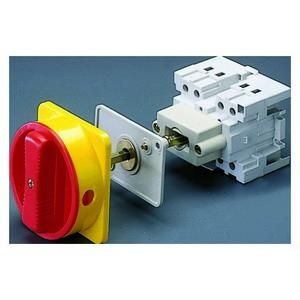

Gewiss GW70001 for control cabinet door 2P 16A 3TE rotary switch

In stock
SKU: 661677
€26.86
Into a basketIn the basketGo

Overview

Rotary switch for continuous operation, for installation in control cabinets and water-protected housings with fastening accessories for use as: switch with extension shaft for doors, locking switch for control cabinet doors and emergency switch.

Property Value
Design: On/off switch
Number of poles: 2
Rated continuous current Iu: 16 A
Rated operating current Ie at AC-3, 400 V: 16 A
Rated operating power at AC-3, 400 V: 5 kW
Complete device in housing: no
With zero position: yes
Design of the actuating element: Door coupling rotary drive
Connection type main circuit: Screw connection
Suitable for intermediate installation: no
Suitable for front mounting: yes
Suitable for Distribution board installation: yes
Suitable for floor mounting: no
Protection class (IP), front: IP65
With retraction to zero position: no
Housing material: Plastic

Characteristics

HABF. control cabinet door 2P 16A 3TE
ManufacturerGewiss
HANGW70001
GTIN8011564011953
Connection type main circuitScrew connection
VersionOn/off switch
Design of the actuating elementDoor coupling rotary drive
Rated operational power at AC-3, 400 V5kW
Rated operational current Ie at AC-3, 400 V16A
Rated continuous current Iu16A
Suitable for floor mountingNo
Suitable for front mountingYes
Suitable for distribution board installationYes
Suitable for intermediate constructionNo
Complete device in housingNo
With zero settingYes
With retraction to zero positionNo
Number of poles2
Protection class (IP), frontIP65
Housing materialPlastic
