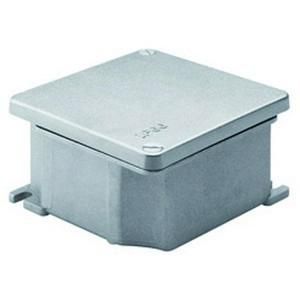

Gewiss GW76285 Alu unpainted 239X202X85 mm IP66 junction box

In stock
SKU: 657177
€50.07
Into a basketIn the basketGo

Overview

Die-cast aluminum junction box with smooth walls without pre-punched areas and captive stainless steel cover screws. The required cable entries must be created on site. The junction box can be attached either inside or outside. The base and the cover are provided with a grounding screw. There are fastening points for mounting plates or DIN rails in the lower part of the housing.

Property Value
Width: 215 mm
Length: 252 mm
Depth: 91 mm
Color: gray
Protection class (IP): IP66
Halogen-free: no
Equipment: without
Mounting type: Wall/ceiling mounting
Material: Aluminium
Cover fastening: screwed
Sealable: no
Can be mounted in series: yes
Shape: rectangular
Type of housing feedthrough: without
For Ex zone gas: without
Functional integrity: without
Explosion-tested version: no
Casting compound included: no
Casting compound: no
For Ex zone dust: without
Installation under water: no
Transparent cover: no
Installation in the ground: no
Surface: untreated
With shielding: no
Insertion from the rear: no
Weatherproof: yes
Cover design: blank cover
Operating temperature: -25 to 60 °C

Characteristics

Explosion-tested versionNo
HABAluminium unpainted 239X202X85 mm IP66
ManufacturerGewiss
HANGW76285
GTIN8011564244054
Cover designBlind cover
Width215 mm
Operating temperature-25 to 60 °C
ColorGray
ShapeRectangular
Functional preservationWithout
Halogen freeNo
Length252 mm
Mounting typeWall/ceiling mounting
SurfaceUntreated
IP protection)IP66
Depth91 mm
MaterialAluminum
