Gewiss GW76848 nickel-plated brass M20 IP65 cable gland

In stock
SKU: 661763
€2.90
Into a basketIn the basketGo

Overview

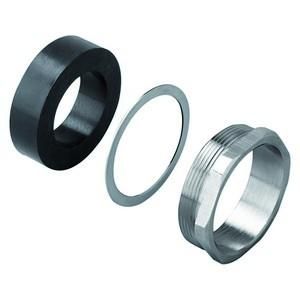

Cable gland made of nickel-plated brass with seals for different diameters.

Property Value
Wrench size: 20 mm
Thread pitch: 1.5 mm
Nominal thread size metric/PG: 20
Suitable for cable diameters: 4 to 13 mm
Protection class (IP): IP65
Operating temperature: -30 to 100 °C
Thread length: 6.5 mm
Thread type: metric
Design: straight
Color: other
Material: metal
With strain relief: no
Surface: nickel-plated
Hexagon corner dimension: 23 mm
Type of seal: cut-out sealing ring
Impact-resistant: yes
Bending protection: no
Material quality: brass
Fiberglass reinforced: no
With lock nut: no
Multiple sealing insert: yes
Flat cable gland: no
Dividable screw connection: no
Explosion-tested version: no
For Ex-zone gas: without
For Ex-zone dust: without
Snaps into opening: no
For armored cables: yes
EMC version: no
Shielded: no

Characteristics

Impact resistantYes
Explosion-tested versionNo
Nominal thread size metric/PG20
Fiberglass reinforcedNo
ShieldedNo
Suitable for cable diameter4 to 13 mm
Wrench size20 mm
HABMade of nickel-plated brass M20 IP65
ManufacturerGewiss
HANGW76848
GTIN8011564209558
VersionStraight
EMC versionNo
Operating temperature-30 to 100 °C
ColorOther
Thread typeMetric
Thread length6.5 mm
Thread1.5 mm
With strain reliefNo
SurfaceNickel-plated
IP protection)IP65
MaterialMetal
Material qualityBrass
