Gewiss GW87413 Street 4M 131W 4000K 700mA 12900lm LED mast light

Gewiss GW87413 Street 4M 131W 4000K 700mA 12900lm LED mast light

In stock

SKU: 663330

Price on request

€849.29

€0

Overview

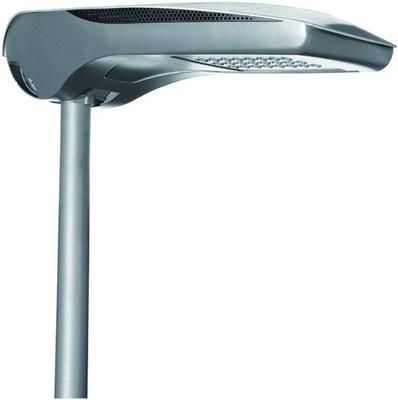

Street light in LED technology STREET O3, housing made of die-cast aluminum, color of lamp roof aluminum / lamp body graphite gray, reflector insert made of anodized pure aluminum 99.85%, with flat glass cover made of tempered safety glass, lamp roof can be opened upwards without tools, the electrical component plate can be replaced without tools, the angle of inclination can be adjusted from +20° to -20°, with climate membrane. The lamp can be used for mast attachment and mast attachment.

Property	Value
Length:	726 mm
Width:	403 mm
Height/depth:	185 mm
Suitable for number of bulbs:	4
Max. System power:	131 W
Rated luminous flux according to IEC 62722-2-1:	12900 lm
Color temperature:	4000 K
Suitable for spigot size:	42 mm
Nominal voltage:	220 V
Housing color:	Aluminum
Operating device:	LED operating device, current-controlled
With Light source:	yes
Light source:	LED not replaceable
Socket:	without
Protection rating (IP):	IP66
Protection class:	II
Impact resistance:	IK08
Mounting type:	Attachment/approach
Color rendering index CRI:	70-79
Voltage type:	AC
With control gear:	yes
Adjustable optics:	no
Cover material:	transparent plastic
Housing material:	aluminum
Remote control:	Stand-alone control
Constant luminous flux control:	no
Light color:	white
With connection cable:	no
With radio control:	no
With program-controlled light control:	no
Surface:	powder-coated
LED nominal current at constant current:	700 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	yes
Dimming DALI:	no
DMX dimming:	no
DSI dimming:	no
Potentiometer dimming (device-integrated):	no
GPRS dimming:	no
LineSwitch dimming:	no
Manufacturer-specific dimming:	no
Mains voltage modulation dimming:	no
Dimming phase control:	no
Dimming phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Energy efficiency class of the built-in lamp:	A++, A+, A (LED)
Rated service life L80/B10 at 25 °C:	100000 h
Light distributor:	Focus lens
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	-25 °C
Luminaire luminous efficacy:	98 lm/W
Power factor:	0.90
Wiring type:	Termination
Number of poles:	4
Connection type:	Screw terminal

Characteristics

Energy efficiency class of the permanently installed light sourceA++, A+, A (LED)

HABStreet 4M 131W 4000K 700mA 12900lm

Manufacturer

HANGW87413

GTIN8011564830615

Connection typeScrew terminal

Type of wiringDiploma

Rated lifetime L80/B10 at 25 °C100000 hours

Rated luminous flux according to IEC 62722-2-112900lm

Rated ambient temperature according to IEC62722-2-1-25°C

Operating deviceLED control gear current controlled

Width403 mm

Dimming 0-10 VNo

Dimming 1-10 VYes

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI70-79

VersionWithout

Remote controlStand-alone control

Suitable for number of lamps4

Suitable for braid size42 mm

Housing colorAluminum

Height/Depth185 mm

Constant luminous flux controlNo

LED nominal current at constant current700mA

Power factor0.90

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy98lm/W

LampsLED not replaceable

Light colorWhite

Light distributorFocus lens

Length726 mm

Max. system performance131 W

With connection cableNo

With operating deviceYes

With radio controlNo

With light sourceYes

With program-controlled lighting controlNo

Mounting typeEssay/Approach

Nominal voltage220V

SurfacePowder coated

Without dimming functionNo

Number of poles4

Impact resistanceIK08

IP protection)IP66

Protection classII

Voltage typeAC

Cover materialPlastic transparent

Housing materialAluminum
