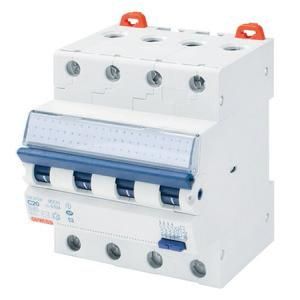

Gewiss GW94379 C-25/0.3A Type A 6kA 4P 4TE RCD/MCB

Gewiss GW94379 C-25/0.3A Type A 6kA 4P 4TE RCD/MCB

In stock

SKU: 662321

Price on request

€316.69

€0

Overview

FI/LS switch, mains voltage-independent residual current circuit breaker with built-in overcurrent protection (RCBO) in accordance with EN61009-1. Suitable for the subsequent installation of 2 additional devices and/or combinations with modules for automatic restart. The switch lever can be sealed in the switched-on and off state or can be locked with a lever lock (order accessories separately) for a padlock. With integrated residual current display and fold-down label plate. Connection (max): 35 mm² with insulated plug-in protection. The connection screws can be provided with a sealable cover (order accessories separately).

Property	Value
Tripping characteristic:	C
Rated current:	25 A
Rated residual current:	0.3 A
Rated voltage:	400 V
Frequency:	50 Hz
Number of poles (total):	4
Width in modular spacing:	4
Fault current type:	A
Installation depth:	72 mm
Rated breaking capacity according to IEC 60947-2:	6 kA
Surge current strength:	0.25 kA
Degree of protection (IP):	IP20
Energy limitation class:	1
Overvoltage category:	3
Degree of pollution:	2
Switching neutral conductor:	no
Number of protected poles:	4
Type of voltage:	AC
False tripping protection:	no
Rated insulation voltage Ui:	500 V
Rated impulse withstand voltage Uimp:	4 kV
Rated breaking capacity according to EN 61009:	6 kA
Rated short-circuit breaking capacity Icn according to EN 61009-1:	6 kA
Shutdown characteristic:	undelayed
With locking device:	no
Ambient temperature during operation:	-25 to 40 °C
Connectable conductor cross-section, single-wire:	35 mm²
Connectable conductor cross-section, stranded:	35 mm²
