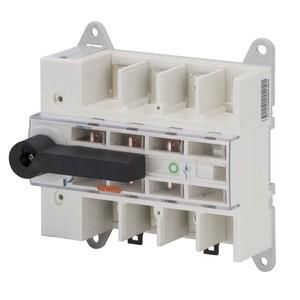

Gewiss GW97727 MSS160 160A 3P load break switch

In stock
SKU: 662543
€179.57
Into a basketIn the basketGo

Overview

Load-disconnector according to EN 60497-3 as a modular device. The feed direction can be freely selected. The switch can be retrofitted with auxiliary contacts, door rotary drives and terminal covers. The switches have isolating properties according to IEC 60947-2. The rotary lever can be secured in the off position with a padlock (provided by the customer).

Property Value
Number of poles: 3
Rated current: 160 A
Rated voltage: 400 V
Switching function: Off switch
With signal lamp: no
Type of voltage: AC
Color of cap: white
Light source: other
Protection class (IP): IP20
Min. rated voltage: 400 V
Short circuit strength (Icw): 4 kA
Lamp base: other
Installation depth: 79.50 mm

Characteristics

Color of the capWhite
Min. rated voltage400 V
HABMSS160 160A 3P
ManufacturerGewiss
HANGW97727
GTIN8011564211476
Rated voltage400V
Rated current160A
Installation depth79.50 mm
Short circuit strength (Icw)4kA
LampsOther
With signal lampNo
Number of poles3
Switching functionOff switch
IP protection)IP20
Voltage typeAC
