Energy efficiency class of the permanently installed light sourceA++, A+, A (LED)

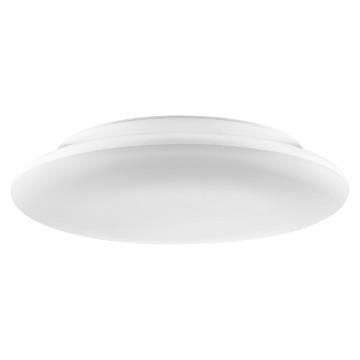

HABELIA CL S2 OPAL Diff 40K ST.Alone OnOff
HANGWF1310GA840
GTIN8034035024788
Covering the luminaire with thermal insulation material possibleNo
Connection typeScrew terminal
Type of wiringDiploma
Execution of the gridWithout
Outer diameter250 mm
Rated luminous flux according to IEC 62722-2-11150lm
Rated ambient temperature according to IEC62722-2-1-20 to 45 °C
Operating deviceLED control gear current controlled
Suitable for computer workstations according to EN 12464-1Yes
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature4000K
Color rendering index CRI80-89
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for number of lamps1
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionNo
Suitable for wall mountingYes
Housing colorWhite
Glow wire test according to IEC 60695-2-11750 °C - 30 s
Height/Depth53 mm
Power factor0.90
Luminaire with limited surface temperature D-markNo
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Light distributorDiffuser lens/optics/panel
Light distributionSymmetrical
Max. system performance12W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
With air slotsNo
Nominal voltage220 to 240 V
Without dimming functionYes
Number of poles2
Impact resistanceIK08
IP protection)IP54
Protection classII
Voltage typeAC
Cover materialPlastic structured
Housing materialPlastic
