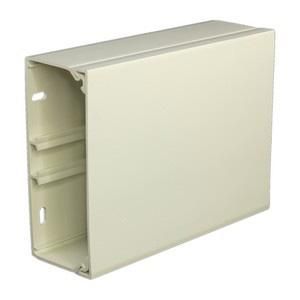

Gewiss NP50014 60x150 pure white FB window sill channel

In stock
SKU: 657248
€8.06
Into a basketIn the basketGo

Overview

Cable routing duct consisting of a lower and upper part. The lower part has holes in the bottom for quick assembly. The upper part is loose and closes the duct across the entire length. Moulded parts are available for changing the direction. Each delivery length of 2 m includes 3 cable retaining clips. The cable retaining clips can be pushed into any position in the lower part. The lower part contains bars for mounting duct boxes and separating rails.

Property Value
Length: 2000 mm
Height: 60 mm
Width: 150 mm
Color: white
RAL number: 9010
Material: Plastic
Material quality: Polyvinyl chloride (PVC)
Usable cross-section: 7320 mm²
Transparent: no
Halogen-free: no
Fastening type: Bottom perforation
Suitable for functional integrity: no
Surface: untreated
Cover design: loose
Number of pluggable Partitions: 2
With cable retaining clip: yes
With protective film: no
With channel connector: no
Delivery on roll: no
Pre-punched: no

Characteristics

Suitable for Functional integrityNo
Pre-punchingsNo
HABNP50014 60x150 pure white FB
Minimal order8 meters
ManufacturerGewiss
HANNP50014
GTIN4011598400703
Cover designLoose
Mounting typeBottom perforation
Width150 mm
ColorWhite
Halogen freeNo
Height60 mm
Length2000 mm
SurfaceUntreated
RAL number9010
TransparentNo
MaterialPlastic
Material qualityPolyvinyl chloride (PVC)
