ABB Stotz-Kontakt 1SAL100263R9901 MC1A301AIJ 3S 1Ö 110-115V/50/110-120V/60 miniature contactor

ABB Stotz-Kontakt 1SAL100263R9901 MC1A301AIJ 3S 1Ö 110-115V/50/110-120V/60 miniature contactor

In stock

SKU: 768822

Price on request

€42.02

€0

Overview

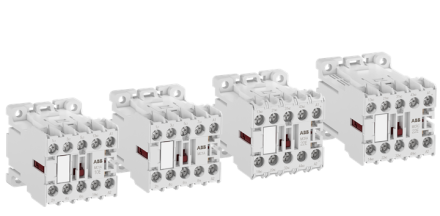

The MC1A miniature contactor is a size-optimized 3-pole contactor with an integrated auxiliary contact, AC control and solder pin connections. It offers the optimal solution when high performance is required but space is limited. These miniature contactors can be used in residential buildings, commercial buildings and many industrial applications to control single or three-phase loads up to 4 kW (AC-3) and 20 A (AC-1) at 690 V or to switch control signals. The contactor is suitable for printed circuit board mounting.

Property	Value
Rated control supply voltage Us at AC 50 Hz:	110 to 12
Rated control supply voltage Us at AC 60 Hz:	110
Voltage type for actuation:	AC
Rated operating current Ie at AC-1, 400 V:	16
Rated operating current Ie at AC-3, 400 V:	9
Rated operating power at AC-3, 400 V:	4
Rated operating current Ie at AC-4, 400 V:	9
Rated operating power at AC-4, 400 V:	4
Rated operating power NEMA:	2.2371
Suitable for series installation:	no
Number of auxiliary contacts as normally closed contacts:	1
Type of connection main circuit:	PCB connection
Number of normally open contacts as main contacts:	3
