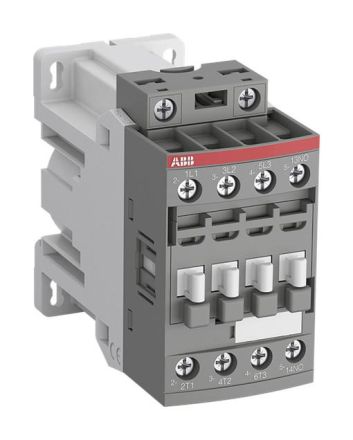

ABB Stotz-Kontakt 1SBL136001R3010 AF09Z-30-10-30 3-pole 1S contactor

In stock
SKU: 543084
€52.23
Into a basketIn the basketGo

Overview

The 3-pole AFZ09 contactors are designed for switching power circuits with motors, slightly inductive or non-inductive loads. The contactors with coil code -30 enable direct control via 24V DC 250mA PLC outputs and require a very low holding power of only 1.7W. All integrated or subsequently attached auxiliary break contacts are designed as mirror contacts in accordance with IEC60947-5-1 Appendix L. They also have built-in overvoltage protection and do not require any additional suppression elements. Other accessories such as timing elements, wiring aids and locking elements, etc., complete the range.

PropertyValue
Number of normally open contacts as main contacts:3
Number of auxiliary contacts as normally open contacts:1
Rated operating power at AC-3, 400 V:4 kW
Rated operating current Ie at AC-1, 400 V:25 A
Rated operating current Ie at AC-3, 400 V:9 A
Type of voltage for actuation:AC/DC
Rated control supply voltage Us at AC 50 Hz:100 to 250 V
Rated control supply voltage Us at AC 60 Hz:100 to 250 V
Rated control supply voltage Us at DC:24 V
Main circuit connection type:screw connection
Suitable for series installation:no
Rated operating power NEMA:1.4914 kW

Characteristics

HABAF09Z-30-10-30 3-pin 1S
ManufacturerABB Stotz-Kontakt
HAN1SBL136001R3010
GTIN3471523113299
Connection type main circuitScrew connection
Number of auxiliary contacts as normally open1
Number of normally open contacts as main contacts3
Rated operating power NEMA1.4914kW
Rated operational power at AC-3, 400 V4kW
Rated operational current Ie at AC-1, 400 V25A
Rated operational current Ie at AC-3, 400 V9 A
Rated control supply voltage Us at AC 50 Hz100 to 250 V
Rated control supply voltage Us at AC 60 Hz100 to 250 V
Rated control supply voltage Us at DC24V
Suitable for series installationNo
Voltage type for actuationAC/DC
