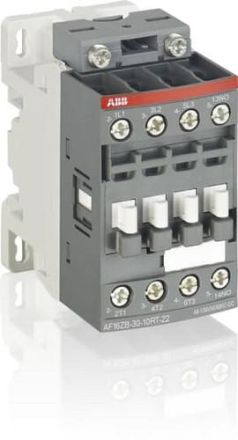

ABB Stotz-Kontakt 1SBL176060R2210 AF16ZB-30-10RT-22 48-130 V50/60Hz/DC Contactor

In stock
SKU: 835242
€114.18
Into a basketIn the basketGo

Overview

The 3-pole AFZB contactors meet the latest standards for rolling stock and allow installation in passenger or driver's cabs of trains that frequently travel in tunnels or underpasses. They switch power circuits with motors, slightly inductive or non-inductive loads. They meet all the main standards for rolling stock: IEC 60947-4-1, IEC 60947-5-1, IEC 60077-1/-2 and applicable parts of the EN 50155 standards, shock and vibration resistance according to IEC 61373 Cat. 1, Class B. They also achieve the highest levels of fire and smoke behavior while complying with the European standard EN 45545-2 (HL2 hazard levels) when mounted in groups. The AFZB contactors can withstand short voltage dips and voltage drops (according to SEMI F47-0706). All integrated or subsequently added auxiliary break contacts are designed as mirror contacts according to IEC60947-5-1 Appendix L. They also have built-in overvoltage protection and do not require any additional suppression elements.

PropertyValue
Normally open main contact:3
Normally open auxiliary contacts:1
Rated operating power at AC-3, 400 V:7.5 kW
Rated operating current Ie at AC-1, 400 V:30 A
Ie at AC-3, 400V:18 A
Voltage type for actuation:AC/DC
Rated control supply voltage AC 50 Hz:48 V
Voltage AC 60Hz:48 V
Rated control supply voltage DC:48 V
Connection type main circuit:other
Suitable for series installation:no

Characteristics

Rated control supply voltage AC 50 Hz48 V
HABAF16ZB-30-10RT-22 48-130V50/60Hz/DC
ManufacturerABB Stotz-Kontakt
HAN1SBL176060R2210
GTIN3471523128224
Connection type main circuitOther
Rated operational power at AC-3, 400 V7.5kW
Rated operational current Ie at AC-1, 400 V30A
Suitable for series installationNo
Voltage type for actuationAC/DC
