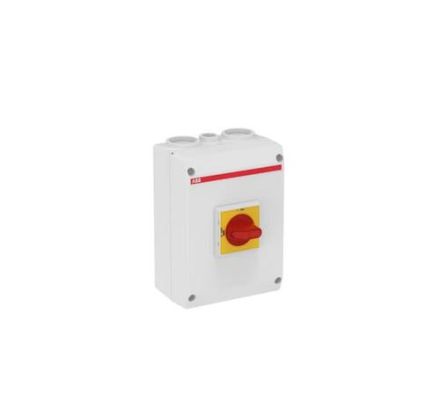

ABB Stotz-Kontakt 1SCA022459R6860 OTP45BA4M switch disconnector

ABB Stotz-Kontakt 1SCA022459R6860 OTP45BA4M switch disconnector

In stock

SKU: 832940

Price on request

€217.64

€0

Overview

Load-break switches in the housing meet the device standards DIN EN 60947-3 and DIN EN 60529. The switches are suitable for use as repair and maintenance switches. Our range includes versions with plastic housings, sheet steel housings, aluminum housings and stainless steel housings. The switches are also available in 3-pole, 4-pole and 6-pole versions. Depending on the type, the area of application is for AC and sometimes also for DC voltages. ABB offers a variety of handles in black and red-yellow versions as accessories. Auxiliary contacts, fourth poles, connection terminals and various cable entries are also available as accessories.

Property	Value
Number of poles:	4
Operating power:	22 kW
Rated continuous current Iu:	63 A
Max. Rated operating voltage Ue at AC:	750 V
Version as EMERGENCY STOP device:	no
Protection class (IP), front:	IP65
Device design:	Complete device in housing
Design of the actuating element:	Rotary knob
Suitable for floor mounting:	no
Integrated motor drive:	no
Suitable for front mounting 4-hole:	yes
Version as maintenance/repair switch:	no
Voltage release optional:	no
Suitable for front mounting central:	no
Suitable for distribution board installation:	no
Version as main switch:	yes
Version as safety switch:	no
Motor drive optional:	no
Lockable:	yes
Version as reversing switch:	no
Color of the actuating element:	red
Rated operating voltage:	750 V
Switching capacity at 400 V:	22 kW
Rated continuous current at AC-21, 400 V:	63 A
Number of switches:	1
Rated continuous current at AC-23, 400 V:	45 A
