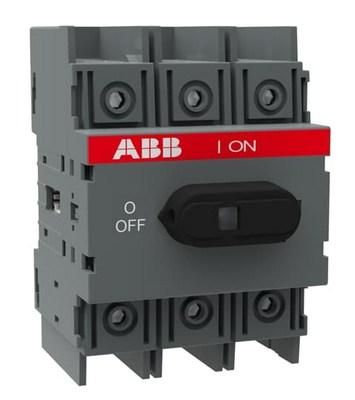

ABB Stotz-Kontakt 1SCA105076R1001 OT60F3 switch disconnector

ABB Stotz-Kontakt 1SCA105076R1001 OT60F3 switch disconnector

In stock

SKU: 763699

Price on request

€89.76

€0

Overview

The manually operated switch disconnectors of the OT series are unique in their variety and flexibility. The OT series switches currents from 16 A to 4000 A and at voltages of up to 690 V AC. Despite their high performance, the switches are very easy to operate and take up little space. The freely selectable installation position enables a high level of flexibility and efficiency in planning. The OT switch disconnectors can be used as main switches in the main or sub-distribution board. ABB also offers a wide range of accessories for this series, such as extension shafts, handles and terminal covers. This means that OT switch disconnectors can also be used in the most demanding applications.

Property	Value
Number of poles:	3
Rated operating power at AC-23, 400 V:	37 kW
Rated continuous current Iu:	60 A
Max. Rated operating voltage Ue at AC:	750 V
Emergency stop device design:	no
Protection class (IP), front:	IP20
Main circuit connection type:	screw connection
Device design:	Built-in device, fixed installation technology
Design of the actuating element:	short rotary handle
Suitable for floor mounting:	yes
Integrated motor drive:	no
Suitable for front mounting 4-hole:	no
Version as maintenance/repair switch:	yes
Voltage release optional:	no
Suitable for front mounting central:	no
Suitable for intermediate installation:	no
Suitable for distribution board installation:	yes
Version as main switch:	yes
Version as safety switch:	no
Motor drive optional:	no
Lockable:	no
Version as reversing switch:	no
Rated short-time withstand current Icw:	2.5 kA
Color of the actuating element:	black
Rated operating voltage:	750 V
Switching capacity at 400 V:	37 kW
Rated continuous current at AC-21, 400 V:	63 A
Rated continuous current at AC-23, 400 V:	63 A
Protection class (NEMA):	1
