HABOTDC100E22 100A 3-pole 1000VDC
HAN1SCA125824R1001
GTIN6417019558202
Connection type main circuitBolt connection
Number of switches1
Designed as main switchYes
Designed as a maintenance/repair switchYes
Design of the actuating elementOther
Rated operating voltage1000V
Rated continuous current Iu100A
Width185.4 mm
Suitable for front mounting 4-holeYes
Suitable for distribution board installationYes
Device typeBuilt-in device Fixed installation technology
Weight2,2
Weight unit kg
Height262 mm

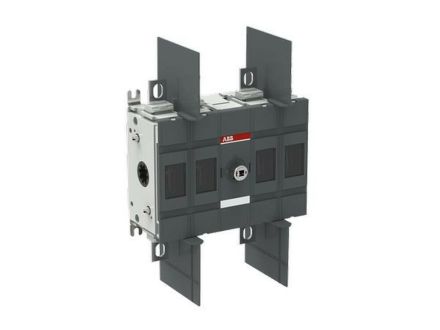

Short descriptionOTDC100E22 DC load break switch 4-pole 100A without handle and shaft
Number of poles4
Protection class (IP), frontIP20
Protection class (NEMA)1
Statistical commodity code85365080
Depth90.5 mm
