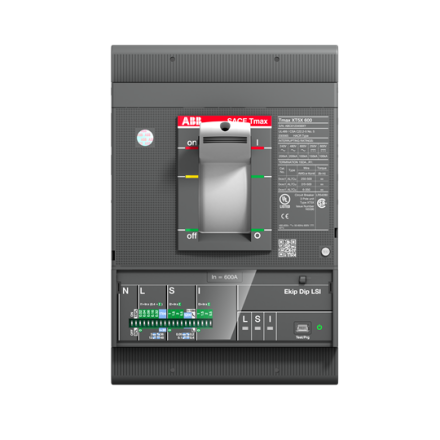

HAB400 EkipM Dip LIUMPCB400 3p FF
HAN1SDA102543R0001
GTIN8056221022552
Connection type main circuitBolt connection
Design of the actuating elementGag
Rated continuous current Iu400A
Rated ultimate short-circuit breaking current Icu at 400 V, 50 Hz65kA
Rated voltage600 to 240 V
Setting range of the instantaneous short-circuit release2400 to 5200 A
Suitable for DIN rail mountingNo
Device typeBuilt-in device Fixed installation technology
DIN rail mounting optionalYes
Integrated earth fault protectionNo
Complete device with protection unitYes
With trip detectorNo
With undervoltage releaseNo
Motor drive integratedNo
Motor drive optionalYes
Number of poles3
Position of the connection for main circuitIn front
IP protection)IP20
Overload release current setting1600 to 400 A
