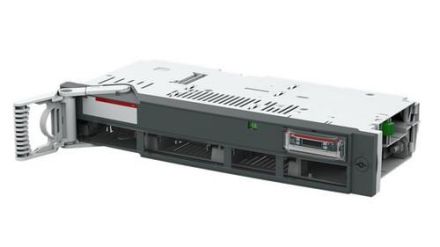

ABB Stotz-Kontakt 1SEP204481R7518 XRG1-50/10-3P-ITS2.D SlimLine XRG for SpEp switch disconnector

ABB Stotz-Kontakt 1SEP204481R7518 XRG1-50/10-3P-ITS2.D SlimLine XRG for SpEp switch disconnector

In stock

SKU: 811683

Price on request

€1,746.85

€0

Overview

SlimLine XRG - Three-pole fuse switch disconnector, horizontal, size NH1, for 50mm busbar spacing and 10mm busbar thickness, with ITS unit (Intelligent Tier Switch with display) - intelligent measuring system with display

Property	Value
Rated continuous current Iu:	250 A
Protection class (IP), front:	IP41
Number of poles:	3
Design as main switch:	yes
Design of the actuating element:	other
Type of connection main circuit:	Bolt connection
Suitable for front mounting:	no
Suitable for floor mounting:	no
With fuse monitoring:	no
Version as EMERGENCY STOP device:	no
Conditional rated short-circuit current Iq:	120 kA
Version as safety switch:	no
Max. Rated operating voltage Ue at AC:	690 V
Suitable for busbar construction:	yes
Suitable for fuse links:	NH1
Position of the actuating element:	front
Motor drive integrated:	no
Motor drive optional:	no
Cable entry:	side
Equipped with connectors:	no
