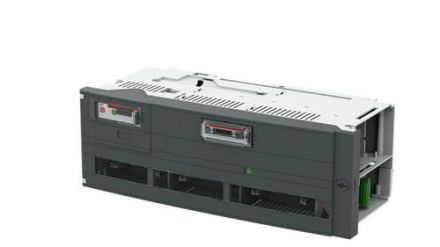

ABB Stotz-Kontakt 1SEP204482R7519 XRG2-50/10-3P-ITS2.D-MOT SlimLine switch disconnector

ABB Stotz-Kontakt 1SEP204482R7519 XRG2-50/10-3P-ITS2.D-MOT SlimLine switch disconnector

In stock

SKU: 811666

Price on request

€3,909.79

€0

Overview

SlimLine XRG - Three-pole fuse switch disconnector, horizontal, size NH2, for 50mm busbar spacing and 10mm busbar thickness, with ITS unit (Intelligent Tier Switch with display) - intelligent measuring system with display and motor

Property	Value
Rated continuous current Iu:	400 A
Protection class (IP), front:	IP41
Number of poles:	3
Designed as main switch:	yes
Type of connection main circuit:	Bolt connection
Suitable for front mounting:	no
Suitable for floor mounting:	no
With fuse monitoring:	no
Designed as EMERGENCY STOP device:	no
Conditional rated short-circuit current Iq:	120 kA
Design as safety switch:	no
Max. Rated operating voltage Ue at AC:	690 V
Suitable for busbar construction:	yes
Suitable for fuse links:	NH2
Position of the actuating element:	front
Integrated motor drive:	yes
Optional motor drive:	no
Cable entry:	side
Equipped with connectors:	no
