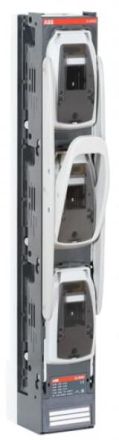

ABB Stotz-Kontakt 1SEP622763R0001 ZLBM1-HC-3P-V 3-pl.schaltb Low fuse switch disconnector

In stock
SKU: 817847
€276.20
Into a basketIn the basketGo

Overview

1SEP622763R0001 ZLBM1-HC-3P-V 3-pl.schaltb Low fuse switch disconnector Manufacturer article number: 1SEP622763R0001, Manufacturer article name: ZLBM1-HC-3P-V 3-pl.schaltb Low

PropertyValue
Rated continuous current Iu:250 A
Protection class (IP), front:IP30
Number of poles:3
Design as main switch:no
Design of the actuating element:other
Type of connection main circuit:Bolt connection
Suitable for front mounting:no
Suitable for floor mounting:no
With fuse monitoring:no
Version as EMERGENCY STOP device:no
Conditional rated short-circuit current Iq:100 kA
Version as safety switch:no
Max. Rated operating voltage Ue at AC:690 V
Suitable for busbar construction:yes
Suitable for fuse links:NH1
Position of the actuating element:front
Integrated motor drive:no
Optional motor drive:no
Cable entry:Bottom (underside)
Equipped with connectors:no

Characteristics

HABZLBM1-HC-3P-V 3-pl.switchable Low
ManufacturerABB Stotz-Kontakt
HAN1SEP622763R0001
GTIN3800161653704
Connection type main circuitBolt connection
Designed as main switchNo
Designed as an EMERGENCY STOP deviceNo
Designed as a safety switchNo
Design of the actuating elementOther
Conditional rated short-circuit current Iq100kA
Rated continuous current Iu250A
Suitable for floor mountingNo
Suitable for front mountingNo
Suitable for busbar constructionYes
Suitable for fuse insertsNH1
Cable entryFloor (bottom)
Max. rated operating voltage Ue at AC690V
With fuse monitoringNo
Equipped with connectorsNo
Motor drive integratedNo
Motor drive optionalNo
Number of poles3
Position of the actuatorIn front
Protection class (IP), frontIP30
ABB Stotz-Kontakt 1SEP622763R0001 ZLBM1-HC-3P-V 3-pl.schaltb Low fuse switch disconnector
ABB Stotz-Kontakt 1SEP622763R0001 ZLBM1-HC-3P-V 3-pl.schaltb Low fuse switch disconnector
€276.20
Into a basketIn the basketGo
