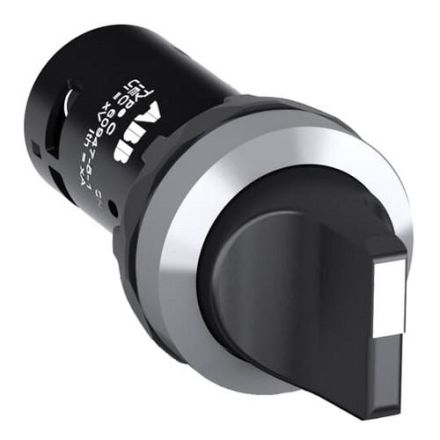

ABB Stotz contact 1SFA619212R3076 2 positions sw chr 1 make contact 1 break contact selector switch control element

In stock
SKU: 922412
€22.80
Into a basketIn the basketGo

Overview

Control and signaling devices, series: Plastic Compact. A most efficient solution that reduces installation time and costs. The compact series has a very high dust and water resistance. The number of order numbers reduced to the necessary makes selection easier and saves time. The all-in-one design enables quick and easy installation. The following standards and approvals are met: IEC/EN 60947-1: Low-voltage switchgear and control devices - Part 1: General rules / IEC/EN 60947-5-1: Low-voltage switchgear and control devices - Part 5-1: Control devices and switching elements - Electromechanical control devices / IEC/EN 60947-5-5: Low-voltage switchgear and control devices - Part 5-5: Control devices and switching elements - Electrical emergency stop device with mechanical latching function. The complete list of all technical data and met standards can be found in our product data sheets.

PropertyValue
Switching positions:3
Normally open:1
Normally closed:1
momentary:yes
latching:yes
Hole diameter:22 mm
Design of the actuating element:long rotary handle
Design of the electrical connection:screw connection
Suitable for lighting:no
Color of the button:black
With Light source:no
Protection class (IP):IP66
With front ring:yes
Front ring material:metal
Front ring color:chrome
Protection class (NEMA):other

Characteristics

LockingYes
HAB2 positions sw chr 1NO 1NC
ManufacturerABB Stotz-Kontakt
HAN1SFA619212R3076
GTIN7320500555613
Design of the actuating elementLong rotary handle
Design of the electrical connectionScrew connection
Color front ringChrome
Button colorBlack
Suitable for lightingNo
Hole diameter22 mm
With front ringYes
With light sourceNo
IP protection)IP66
Protection class (NEMA)Other
GropingYes
Front ring materialMetal
