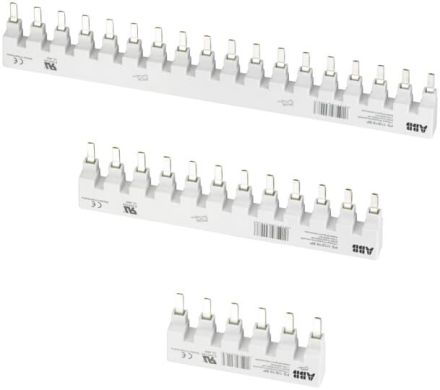

ABB Stotz-Kontakt 2CDL220508R4618 PS 2/46/18 H CB 2Ph. 46Pins 18qmm phase busbar

In stock
SKU: 768831
€61.27
Into a basketIn the basketGo

Overview

The CB series phase busbars meet the requirements of UL508. They are therefore suitable for safe and economical cross-wiring of circuit breakers, residual current devices and other modular installation devices. The following points must be observed for the correct selection: - number of phases, - number of pins, - cross-section per phase, - use of auxiliary switches (H)

PropertyValue
Number of poles:46
Number of phases:2
Length:985 mm
Cross-section:18 mm²
Rated continuous current Iu:80 A
Max. Rated operating voltage Ue:600 V
Insulated:yes
Suitable for number of devices:23
Suitable for devices with N conductor:no
Rated short-time withstand current Icw:10 kA
Suitable for devices with auxiliary switch:yes
Design of the electrical connection:pin

Characteristics

Suitable for devices with auxiliary switchYes
Suitable for devices with N conductorNo
Suitable for number of devices23
HABPS 2/46/18 H CB 2Ph. 46Pins 18qmm
ManufacturerABB Stotz-Kontakt
HAN2CDL220508R4618
GTIN4016779906821
Number of phases2
Design of the electrical connectionPen
Rated continuous current Iu80A
Rated short-time withstand current Icw10kA
IsolatedYes
Length985 mm
Max. rated operating voltage Ue600V
Number of poles46
Cross-section18 mm²
