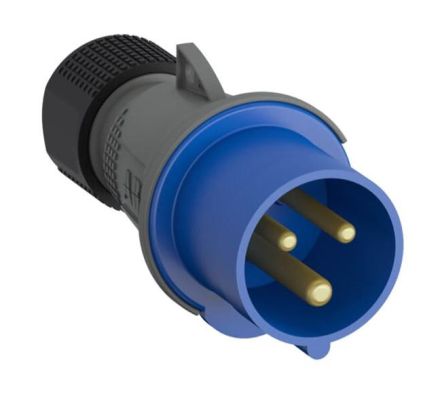

ABB Stotz-Kontakt 2CMA101975R1000 232EP6 2P+PE 32A IP44 CEE plug

In stock
SKU: 542884
€94.29
Into a basketIn the basketGo

Overview

Industrial connectors are the solution for industrial sectors with high demands on safety, durability, reliability and cost savings for the end user. The range consists of IP44 and IP67 devices from 16 A to 125 A, from simple plugs to flexible customer-specific combination solutions. The products follow an ergonomic and robust design, are quick to assemble and have a long service life. The range covers all current clock positions. The connectors are approved according to IEC 60 309-1, 2- and -4. Country-specific approvals are also available on request.

PropertyValue
IEC current:32 A
Number of poles:3
Voltage according to EN 60309-2:200-250 V (50+60 Hz) blue
UL/CSA current (if UL version required):32 A
Identification color:blue
Phase inverter:no
Protection class (IP):IP44
Connection technology:Screw terminal
Cable entry:screw connection
Plug direction:straight
Time setting:6 h
Material:plastic
Military version:no
RAL number:7012

Characteristics

Phase inverterNo
HAB232EP6 2P+PE 32A IP44
ManufacturerABB Stotz-Kontakt
HAN2CMA101975R1000
GTIN7392696019750
Connection technologyScrew terminal
IEC current32 A
Cable entryScrew connection
Identification colorBlue
Military versionNo
Number of poles3
RAL number7012
IP protection)IP44
Voltage according to EN 60309-2200-250 V (50+60 Hz) blue
Plug directionStraight
UL/CSA current rating (if UL version required)32 A
Time position6 hours
MaterialPlastic
