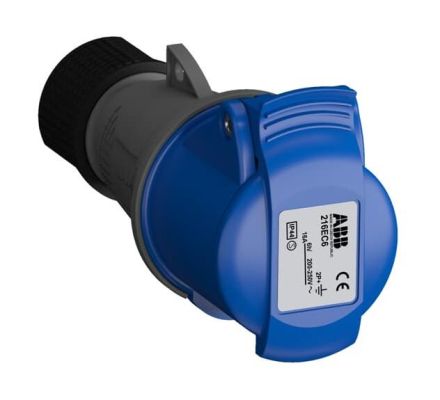

ABB Stotz-Kontakt 2CMA102003R1000 216EC6 2P+E 16A IP44 CEE coupling

In stock
SKU: 542885
€21.78
Into a basketIn the basketGo

Overview

Industrial connectors are the solution for industrial sectors with high demands on safety, durability, reliability and cost savings for the end user. The range consists of IP44 and IP67 devices from 16 A to 125 A, from simple plugs to flexible customer-specific combination solutions. The products follow an ergonomic and robust design, are quick to assemble and have a long service life. The range covers all current clock positions. The connectors are approved according to IEC 60 309-1, 2- and -4. Country-specific approvals are also available on request.

PropertyValue
IEC current:16 A
UL/CSA current (if UL version required):16 A
Number of poles:3
Connection technology:screw terminal
Plug direction:straight
Cable entry:screw connection
Voltage according to EN 60309-2:200-250 V (50+60 Hz) blue
Time position:6 h
Identification color:blue
Protection class (IP):IP44
Material:plastic
Military version:no
RAL number:7012

Characteristics

HAB216EC6 2P+E 16A IP44
ManufacturerABB Stotz-Kontakt
HAN2CMA102003R1000
GTIN7392696020039
Connection technologyScrew terminal
IEC current16A
Cable entryScrew connection
Identification colorBlue
Military versionNo
Number of poles3
RAL number7012
IP protection)IP44
Voltage according to EN 60309-2200-250 V (50+60 Hz) blue
Plug directionStraight
UL/CSA current rating (if UL version required)16A
Time position6 hours
MaterialPlastic
ABB Stotz-Kontakt 2CMA102003R1000 216EC6 2P+E 16A IP44 CEE coupling
ABB Stotz-Kontakt 2CMA102003R1000 216EC6 2P+E 16A IP44 CEE coupling
€21.78
Into a basketIn the basketGo
