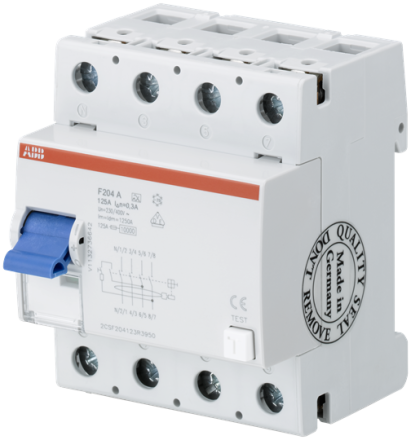

Residual current circuit breakers (RCCBs) offer personal and material protection as well as protection against electrically ignited fires in accordance with DIN0100-410 and DIN0100-530. The residual current circuit breakers of the F200 series ensure protection against sinusoidal alternating currents and pulsating currents to earth. As well as fault protection (protection against indirect contact), additional protection (with I n 30 mA) and fire protection (with I n 300 mA). They meet the product standards IEC/EN 61008-1, 61008-2-1, 61543 (VDE 0664 10, 11, 30) and for F200 A to 100 A UL 1053. Areas of application are household, commercial and industrial applications. The extensive range of accessories offers you everything you need for your installation tasks. Numerous approvals make the F200 suitable for worldwide use. Optimum compromise between safety and operational continuity thanks to the interference immunity against unwanted triggering with surge current resistance (surge current form 8/20 s) = 5000 A. Selectivity with downstream devices with a smaller rated residual current of e.g. 30 mA (see selectivity tables in the catalog, chapter Technology).
