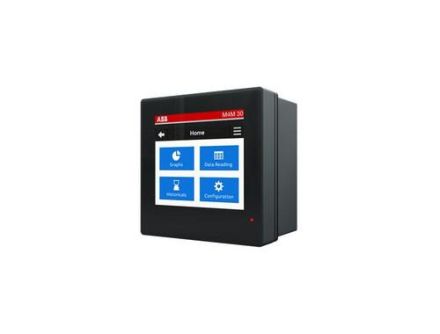

ABB Stotz-Kontakt 2CSG202471R4051 M4M 30 I/O network analysis device

In stock

SKU: 811911

Price on request

€376.69

€0

Overview

M4M 30 I/O is a multimeter for door installation (96x96x57) with 4 programmable I/O, power supply 48-240V AC/DC, Bluetooth & additional 4 I/O

Property	Value
Width in division units:	5.5
Calibrated:	yes
Pole type:	three-wire/four-wire
Meter type:	electronic
Display type:	digital
Mounting type:	front mounting
Accuracy class:	C
Protection class (NEMA):	other
Maximum current (Imax):	6 A
Nominal voltage (Un) NL:	50 to 400 V
Pulse rate:	1 to 999999 Imp/kWh (kvarh)
Protection class (IP):	IP54
Frequency:	50 to 60 Hz
Tariff design:	Multi-tariff
Tariff control:	internal/external
Energy type:	Active and reactive power
Nominal current (In):	5 A
Design:	Measuring transformer
Measurement type load profile:	yes
EDL40 signature:	no
With lock code:	no
Pulse type:	S0
Nominal voltage (Un) LL:	87 to 690 V
Number of digits:	8
Suitable for:	Purchase/delivery
Backstop:	yes
Approval:	National
Pulse output:	electrical
Interface design:	Modbus
