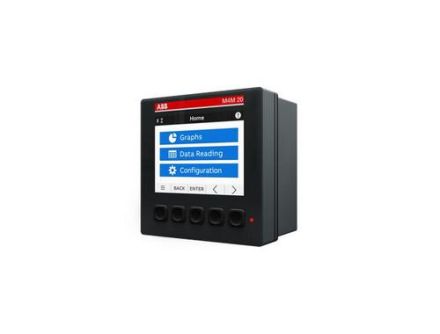

ABB Stotz-Kontakt 2CSG251161R4051 M4M 20 I/O network analyzer

In stock

SKU: 811918

Price on request

€271.23

€0

Overview

M4M 20 I/O is a network analyzer with 2 digital outputs, 2 analog inputs, 2 programmable I/O, auxiliary voltage 48-240 V AC/DC, Bluetooth and Modbus RTU

Property	Value
Width in division units:	5.5
Calibrated:	yes
Pole type:	three-wire/four-wire
Meter type:	electronic
Display type:	digital
Mounting type:	front mounting
Accuracy class:	C
Protection class (NEMA):	other
Maximum current (Imax):	6 A
Nominal voltage (Un) NL:	50 to 400 V
Pulse rate:	1 to 999999 Imp/kWh (kvarh)
Protection class (IP):	IP54
Frequency:	50 to 60 Hz
Energy type:	Active and reactive power
Nominal current (In):	5 A
Design:	Measuring transformer
Measurement type load profile:	no
EDL40 signature:	no
With Locking code:	no
Pulse type:	S0
Nominal voltage (Un) LL:	87 to 690 V
Number of digits:	8
Suitable for:	Purchase/delivery
Backstop:	yes
Approval:	National
Pulse output:	electrical
Interface design:	Modbus
