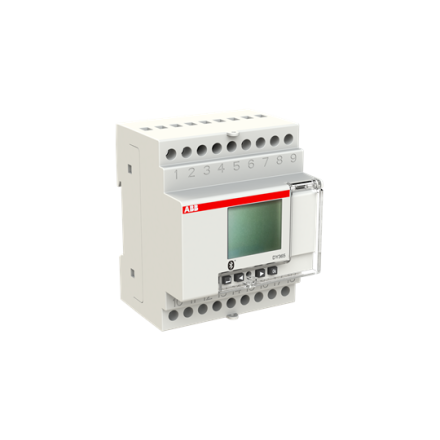

ABB Stotz-Kontakt 2CSM221201R1000 DY365 2 K Integrated Bluetooth timer

In stock
SKU: 763688
€271.52
Into a basketIn the basketGo

Overview

Digital year-round timer with integrated Bluetooth interface for app programming with smartphone or tablet. Can be expanded to up to 6 channels with channel extensions. Potential-free changeover contacts for time-dependent control of operating resources. Programming of daily, weekly, holiday, impulse, cycle and random programs with up to 120 memory locations. High security thanks to sealable transparent cover and access protection via PIN code. LED load up to 500 W switchable. Backlit display and automatic changeover from summer time to winter time. Connection of separate DCF77 antenna or GPS antenna possible.

PropertyValue
Width in pitch units:4
Number of channels:2
Protection class (IP):IP20
Supply voltage:230 V
Power reserve in years:5
Weekly program:yes
Annual program:yes
Mounting type:DIN rail
Type of supply voltage:AC
Frequency of Supply voltage:50 to 60 Hz
Accuracy per day:0.5 s
Text guidance in the display:yes
24 h program:yes
60 min program:no
Automatic summer/winter time change:yes
Shortest switching time channel 1:1 min
Holiday program:yes
Pulse program:yes
Cycle program:yes
Astro program:yes
External button input:yes
Random program:yes
Operating hours counter:yes
Mains synchronous:yes
Quartz controlled:yes
Radio controlled:yes
Shortest switching time channel 2:1 min
Contact design:Changeover contact
Manual operation:yes
Number of memory locations:400
Circuit preselection:yes
Nominal switching current at 250 V AC:16 A
Potential-free switching contact:yes
Width:72 mm
Height:88 mm
Depth:65 mm
External programming:yes
Radio controlled (DCF77):yes
GPS:yes
With memory card:no

Characteristics

Type of voltage of the supply voltageAC
Supply voltage230 V
Number of channels2
HABDY365 2K Integrated Bluetooth
ManufacturerABB Stotz-Kontakt
HAN2CSM221201R1000
GTIN8012542212010
Width72 mm
Width in pitch units4
Height88 mm
Mounting typeDIN rail
IP protection)IP20
Depth65 mm
Supply voltage230V
ABB Stotz-Kontakt 2CSM221201R1000 DY365 2 K Integrated Bluetooth timer
ABB Stotz-Kontakt 2CSM221201R1000 DY365 2 K Integrated Bluetooth timer
