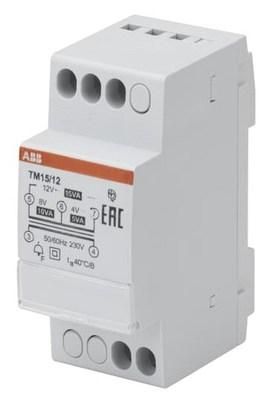

ABB Stotz-Kontakt 2CSM228735R0802 TM15/12 15VA 12VAC bell transformer

In stock

SKU: 763674

Price on request

€28.31

€0

Overview

2CSM228735R0802 TM15/12 15VA 12VAC bell transformer Manufacturer article number: 2CSM228735R0802, Manufacturer article name: TM15/12 15VA 12VAC

Property	Value
Type of transformer:	Standard bell transformer
Primary voltage:	230 V
Width in pitch units:	2
Secondary voltage 1:	4 V
Secondary voltage 2:	8 V
Secondary voltage 3:	12 V
Secondary current 1:	3.75 A
Secondary current 2:	1.87 A
Secondary current 3:	1.25 A
Suitable for flush-mounted installation:	no
Short-circuit proof:	yes
Suitable for surface-mounted installation:	no
Length:	65 mm
Width:	35 mm
Height:	85 mm
Max. output power:	15 W
Suitable for series installation:	yes
Temperature protection:	no
Max. Output current:	3.75 A
Max. power dissipation:	4 W
With on/off switch:	no
