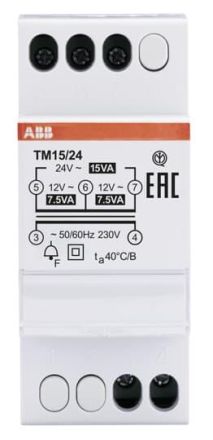

ABB Stotz-Kontakt 2CSM228745R0802 TM15/24 15VA 24VAC bell transformer

In stock
SKU: 817785
€26.48
Into a basketIn the basketGo

Overview

Transformers for supplying extra-low voltage (SELV), suitable for loads that require discontinuous supply, in particular doorbells and chimes. Fail-safe operation and excellent safety are guaranteed thanks to the perfect insulation and separation between the primary and secondary circuits.

PropertyValue
Type of transformer:Standard bell transformer
Primary voltage:230 V
Width in pitch units:2
Secondary voltage 1:12 V
Secondary voltage 2:24 V
Secondary current 1:1.25 A
Secondary current 2:0.62 A
Suitable for flush mounting:no
Short-circuit proof:yes
Suitable for surface mounting:no
Length:65 mm
Width:35 mm
Height:85 mm
Max. output power:15 W
Suitable for series installation:yes
Temperature protection:no
Max. output current:1.25 A
Max. Power dissipation:4 W
With on/off switch:no

Characteristics

Secondary voltage 112 V
HABTM15/24 15VA 24VAC
ManufacturerABB Stotz-Kontakt
HAN2CSM228745R0802
GTIN8012542287452
Width35 mm
Width in pitch units2
Suitable for series installationYes
Height85 mm
Length65 mm
With on/off switchNo
