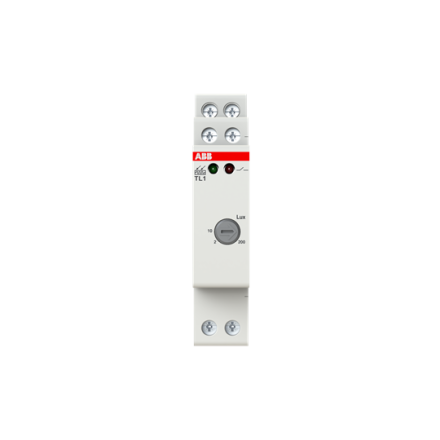

ABB Stotz-Kontakt 2CSM229921R1341 TL1 10-230V/AC 16A twilight switch

In stock

SKU: 769444

Price on request

€76.62

€0

Overview

Twilight switch for mounting on DIN rail. Includes external light sensor for wall mounting. Meets standards EN 60669-1, EN 60669-2-1, EN 60730-1. With LED signaling for setpoint and contact status. Brightness value adjustable on the front of the device. With switching delay to avoid unnecessary switching.

Property	Value
Switch-on delay:	23 s
Switch-off delay:	23 s
Suitable for protection class (IP):	IP54
Nominal voltage:	230 V
Mounting type:	Flush-mounted
Color:	white
Switch-on brightness:	2 to 200 lx
Operating temperature:	-25 to 55 °C
Max. Switching capacity:	1000 W
Sensor design:	Separate light sensor
Switch-off brightness:	2 to 200 lx
Contacts:	1 normally open contact
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Surface:	untreated
Surface design:	glossy
Suitable for C load:	no
With automatic Night switch-off:	no
Transparent:	no
Swivelling:	yes
Min. depth of device box:	65 mm
