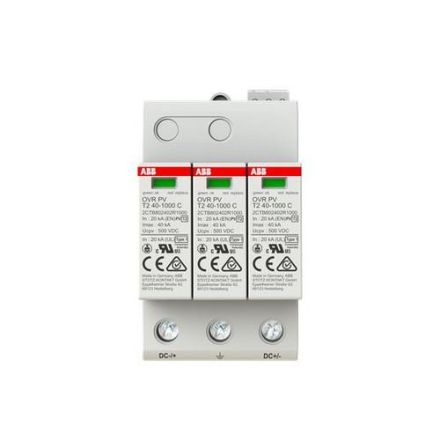

ABB Stotz-Kontakt 2CTB802401R1000 OVR PV T2 40-1000 P surge protection

In stock
SKU: 838618
€250.55
Into a basketIn the basketGo

Overview

The OVR PV T2 surge protection device protects electrical systems against surges. They are tested in accordance with IEC 61643-31, DIN EN 50539-11 and UL 1449 5th Ed Type 2. The status of the surge protection device is shown via a function display. OVR with Telesignal TS are optionally equipped with a potential-free changeover contact and can report the status to a monitoring system, for example. The application is specifically on the DC side of photovoltaic systems.

PropertyValue
Protection level:3 kV
Nominal discharge current (8/20):20 kA
Maximum continuous voltage AC:1000 V
Maximum continuous voltage DC:1000 V
Nominal voltage DC:1000 V
Mounting type:DIN rail TH35
Size:3 TE
Signaling on the device:without
with Remote signaling contact:yes
Test class type 2:yes
Max. conductor cross-section flexible (fine-stranded):25 mm²
Max. PV voltage:1000 V
Max. Conductor cross-section rigid (single/multi-wire):35 mm²
Integrated backup fuse:no
Protection class (IP):IP20
DC network type:yes
IT network type:no
TN network type:no
TN network type:no
TN-C network type:no
TN-CS network type:no
TN-S network type:no
TT network type:no
TN network type other:no
Number of conductors (excluding earth):2
Short-circuit strength (Isccr):10 kA
Max. discharge current (8/20):40 kA
Integrated short-circuit protection:no
Leakage current free:no

Characteristics

Max. conductor cross-section rigid (single/multi-wire)35 mm²
Max. conductor cross-section flexible (fine-stranded)25 mm²
Protection level3 kV
With remote signaling contactYes
Highest continuous voltage DC1000 V
Number of conductors (excluding earth)2
Network form TTNo
Network type TN-SNo
Max. discharge current (8/20)40 kA
Test class type 2Yes
Network form TNNo
Network type TN-CNo
Nominal voltage DC1000 V
Network type TN-C-SNo
Short circuit strength (Isccr)10 kA
Network type DCYes
Integrated backup fuseNo
Network type ITNo
HABOVR PV T2 40-1000 P
ManufacturerABB Stotz-Kontakt
HAN2CTB802401R1000
GTIN4053546050165
Size3 HP
Highest continuous voltage AC1000V
Mounting typeDIN rail TH35
Nominal discharge current (8/20)20kA
IP protection)IP20
Signaling on the deviceWithout
