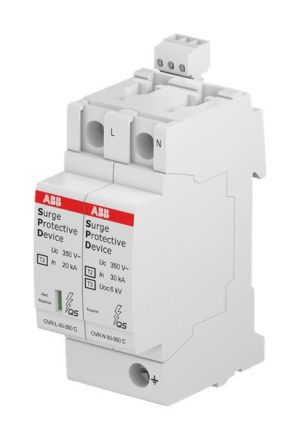

ABB Stotz-Kontakt 2CTB803972R1400 OVR T2 1N 40-440 P TS QS surge arrester

In stock
SKU: 543065
€177.81
Into a basketIn the basketGo

Overview

SPD type 2 surge protection devices with QuickSafe® technology, tested in accordance with DIN EN 61643-11, are suitable for protecting low-voltage electrical systems and end devices from dangerous surges. The SPDs meet the surge protection requirements set out in DIN0100-443 and 534. All surge protection devices are compatible with the System pro M compact series and can be connected to these via phase rails. All devices are equipped with a function display. The versions with reserve varistor(s) offer additional protection for the electrical system in that the surge protection device is not completely disconnected from the mains at the end of its service life, but an additional varistor guarantees basic protection and the system is therefore still protected until the surge protection module is replaced.

PropertyValue
Protection level:1.5 kV
Nominal discharge current (8/20):20 kA
Maximum continuous voltage AC:440 V
Nominal voltage AC:230 V
Protection level LN:1.25 kV
Mounting type:DIN rail TH35
Size:2 TE
Signaling on the device:optical
With remote signaling contact:yes
Test class type 2:yes
Max. conductor cross-section flexible (fine-stranded):16 mm²
Max. Conductor cross-section rigid (single/multi-wire):25 mm²
Protection level N-PE:1.4 kV
Integrated backup fuse:no
Protection class (IP):IP20
Network type DC:no
Network type IT:no
Network type TN:yes
Network type TN-C:no
Network type TN-CS:yes
Network type TN-S:yes
Network type TT:yes
Network type other:no
Number of conductors (excluding earth):2
Short-circuit strength (Isccr):100 kA
Max. discharge current (8/20):80 kA

Characteristics

Max. conductor cross-section rigid (single/multi-wire)25 mm²
Max. conductor cross-section flexible (fine-stranded)16 mm²
Protection level1.5 kV
With remote signaling contactYes
Number of conductors (excluding earth)2
Network form TTYes
Network type TN-SYes
Max. discharge current (8/20)80 kA
Test class type 2Yes
Network form TNYes
Network type TN-CNo
Network type TN-C-SYes
Short circuit strength (Isccr)100 kA
Protection level L-N1.25 kV
Network type DCNo
Protection level N-PE1.4 kV
Integrated backup fuseNo
Network type ITNo
HABOVR T2 1N 40-440 P TS QS
ManufacturerABB Stotz-Kontakt
HAN2CTB803972R1400
GTIN3660308524577
Size2 HP
Highest continuous voltage AC440V
Mounting typeDIN rail TH35
Nominal discharge current (8/20)20kA
Nominal voltage AC230V
IP protection)IP20
Signaling on the deviceOptical
