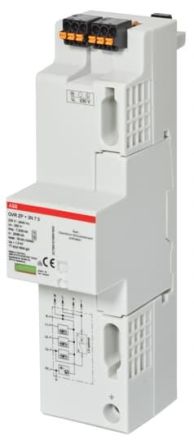

ABB Stotz-Kontakt 2CTB815799R1700 OVR ZP+3L 7,5-255 3p TNC 7,5/22.5kA surge arrester

In stock
SKU: 770300
€309.27
Into a basketIn the basketGo

Overview

Combined arrester with function indicator, for tool-free installation on the 40mm busbar system with prepared voltage tap. The voltage tap (L and N) for RfZ and APZ according to the application rule VDE-AR-N 4100 can be retrofitted at any time using a set (optional). Application: Buildings without external lightning protection and to meet the requirements for overvoltage protection of the electrical system according to DIN0100-443.

PropertyValue
Maximum continuous voltage AC:255 V
Lightning impulse current (10/350 µs):7.5 kA
Protection level:1.5 kV
Test class:Type 1 and 2
Number of poles:3
Nominal voltage AC:230 V
Blow-out:no
Size:2 TE
Remote signaling:no
Signaling on the device:optical
TN-CS network type:yes
DC network type:no
TN network type:no
Energetically coordinated protection effect for the end device:no
Mounting type:Busbar
TT network type:no
Integrated back-up fuse:no
Follow current extinguishing capacity:25 kA
Max. Conductor cross-section rigid (single/multi-wire):35 mm²
Max. conductor cross-section flexible (fine-stranded):50 mm²
Network type other:no
Network type TN-C:yes
Network type IT:no
Network type TN-S:no
Protection level L-PE:1.5 kV
Protection class (IP):IP30

Characteristics

Max. conductor cross-section rigid (single/multi-wire)35 mm²
Max. conductor cross-section flexible (fine-stranded)50 mm²
Lightning surge current (10/350 µs)7.5 kA
Protection level1.5 kV
Network form TTNo
Network type TN-SNo
Network form TNNo
Network type TN-CYes
Network type TN-C-SYes
Network type DCNo
Integrated backup fuseNo
Network type ITNo
HABOVR ZP+3L 7,5-255 3p TNC 7,5/22.5kA
ManufacturerABB Stotz-Kontakt
HAN2CTB815799R1700
GTIN3660308527981
Size2 HP
Highest continuous voltage AC255V
Mounting typeBusbar
Nominal voltage AC230V
Number of poles3
IP protection)IP30
Signaling on the deviceOptical
