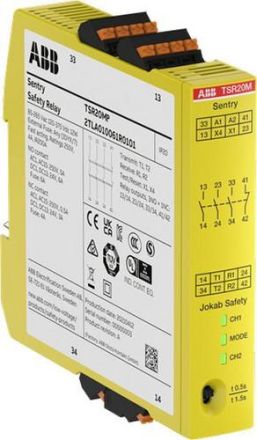

ABB Stotz-Kontakt 2TLA010061R0101 SENTRY TSR20MP Relay outputs 3NO+1NC safety relay

In stock
SKU: 832936
€396.23
Into a basketIn the basketGo

Overview

The Sentry series from ABB covers the entire spectrum of safety relays, from basic models for simple safety applications or for multiplying safety outputs, to highly flexible universal models with extremely precise timer functions. The series therefore covers all requirements for safety applications. Manual or automatic reset can be easily selected using a switch on the front of the relay. The new multi-reset function enables up to 10 Sentry safety relays to be reset with just one reset button. The basic BSR models are suitable for emergency stop shutdowns or for expanding safety outputs, for example. The single-function SSR models are suitable for applications such as monitoring contacts and OSSD signals or for two-hand switching. The TSR safety timers are characterized by their very high accuracy of better than 1%, and the USR universal models for all common safety applications also offer display and configuration options.

PropertyValue
Safety type according to IEC 61496-1:without
Suitable for monitoring position switches:no
Suitable for monitoring proximity switches:no
Evaluation of inputs:two-channel
With TÜV approval:yes
Number of outputs, safety-related, delayed, contact-based:4
Suitable for monitoring magnetic switches:no
With UL approval:yes
With Muting function:no
Mounting rail mounting possible:yes
Performance level according to EN ISO 13849-1:Level e
Design:other
Design of the electrical connection:plug connection
Suitable for monitoring optoelectronic protective devices:no
Stop category according to IEC 60204:1
Suitable for monitoring EMERGENCY STOP circuits:yes
Suitable for monitoring valves:no
Suitable for monitoring tactile sensors:no
With approval for BG BIA:no
Width:22.5 mm
Height:120 mm
Depth:120 mm
With removable terminals:yes
With start input:yes
With feedback loop:yes
Off delay:20 s
SIL according to IEC 61508:3

Characteristics

HABSENTRY TSR20MP Relay outputs 3NO+1NC
ManufacturerABB Stotz-Kontakt
HAN2TLA010061R0101
GTIN7350024486339
VersionOther
Design of the electrical connectionPlug connection
Width22.5 mm
Height120 mm
With removable clampsYes
Performance Level according to EN ISO 13849-1Level e
SIL according to IEC 615083
Depth120 mm
Mounting rail possibleYes
