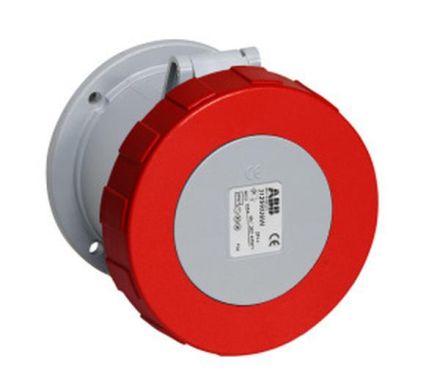

ABB Stotz-Kontakt 3125RU11W panel socket, 2CMA167139R1000

In stock
SKU: 459444
€485.30
Into a basketIn the basketGo

Overview

Industrial connectors are the solution for industrial sectors with high demands on safety, durability, reliability and cost savings for the end user. The range consists of IP44 and IP67 devices from 16 A to 125 A, from simple plugs to flexible customer-specific combination solutions. The products follow an ergonomic and robust design, are quick to assemble and have a long service life. The range covers all current clock positions. The connectors are approved according to IEC 60 309-1, 2- and -4. Country-specific approvals are also available on request.

PropertyValue
IEC current:125 A
UL/CSA current (if UL version required):125 A
Number of poles:4
Connection technology:screw terminal
Plug direction:straight
Voltage according to EN 60309-2:400-440 V (50+60 Hz) red
Time position:11 h
Identification color:red
Protection class (IP):IP67
Material:Plastic
Military version:no
Hole spacing horizontal:90 mm
Hole spacing vertical:90 mm
Flange dimension horizontal:115 mm
Flange dimension vertical:115 mm
RAL number:7001
Rated voltage:440 to 460 V
Rated frequency:60 Hz

Characteristics

Rated frequency60 Hz
HAB3125RU11W
ManufacturerABB Stotz-Kontakt
HAN2CMA167139R1000
GTIN7392696671392
Connection technologyScrew terminal
Rated voltage440 to 460 V
IEC current125A
Identification colorRed
Military versionNo
Number of poles4
RAL number7001
IP protection)IP67
Voltage according to EN 60309-2400-440 V (50+60 Hz) red
Plug directionStraight
UL/CSA current rating (if UL version required)125A
Time position11am
MaterialPlastic
