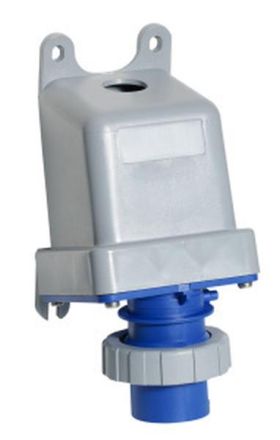

ABB Stotz-Kontakt 316BS10W wall plug, 2CMA167066R1000

In stock
SKU: 458831
€202.87
Into a basketIn the basketGo

Overview

Industrial connectors are the solution for industrial sectors with high demands on safety, durability, reliability and cost savings for the end user. The range consists of IP44 and IP67 devices from 16 A to 125 A, from simple plugs to flexible customer-specific combination solutions. The products follow an ergonomic and robust design, are quick to assemble and have a long service life. The range covers all current clock positions. The connectors are approved according to IEC 60 309-1, 2- and -4. Country-specific approvals are also available on request.

PropertyValue
IEC current:16 A
UL/CSA current (if UL version required):16 A
Number of poles:4
Connection technology:screw terminal
Plug direction:angled
Voltage according to EN 60309-2:50-500 V (100-300 Hz) green
Time setting:10 h
Identification color:green
Protection class (IP):IP67
Material:Plastic
Phase inverter:no
Design:Surface-mounted device plug
Military version:no
RAL number:7001
Rated voltage:50 to 600 V
Rated frequency:100 to 300 Hz

Characteristics

Rated frequency100 to 300 Hz
Phase inverterNo
HAB316BS10W
ManufacturerABB Stotz-Kontakt
HAN2CMA167066R1000
GTIN7392696670661
Connection technologyScrew terminal
DesignSurface-mounted device plug
Rated voltage50 to 600 V
IEC current16A
Identification colorGreen
Military versionNo
Number of poles4
RAL number7001
IP protection)IP67
Voltage according to EN 60309-250-500 V (100-300 Hz) green
Plug directionAngled
UL/CSA current rating (if UL version required)16A
Time position10 hrs
MaterialPlastic
