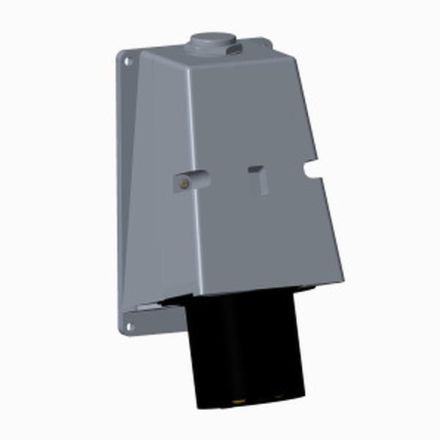

ABB Stotz-Kontakt 363BS7, wall plug, 63 A, IP44 7h, 3P+E, 2CMA167556R1000

In stock
SKU: 458873
€163.62
Into a basketIn the basketGo

Overview

Industrial connectors are the solution for industrial sectors with high demands on safety, durability, reliability and cost savings for the end user. The range consists of IP44 and IP67 devices from 16 A to 125 A, from simple plugs to flexible customer-specific combination solutions. The products follow an ergonomic and robust design, are quick to assemble and have a long service life. The range covers all current clock positions. The connectors are approved according to IEC 60 309-1, 2- and -4. Country-specific approvals are also available on request.

PropertyValue
IEC current:63 A
UL/CSA current (if UL version required):63 A
Number of poles:4
Connection technology:screw terminal
Plug direction:angled
Voltage according to EN 60309-2:500 V (50+60 Hz) black
Time setting:7 h
Identification color:black
Protection class (IP):IP44
Material:Plastic
Phase inverter:no
Design:Surface-mounted device plug
Military version:no
RAL number:7001
Rated voltage:480 to 500 V
Rated frequency:50 to 60 Hz

Characteristics

Rated frequency50 to 60 Hz
Phase inverterNo
HAB363BS7
ManufacturerABB Stotz-Kontakt
HAN2CMA167556R1000
GTIN7392696675567
Connection technologyScrew terminal
DesignSurface-mounted device plug
Rated voltage480 to 500 V
IEC current63 A
Identification colorBlack
Military versionNo
Number of poles4
RAL number7001
IP protection)IP44
Voltage according to EN 60309-2500 V (50+60 Hz) black
Plug directionAngled
UL/CSA current rating (if UL version required)63 A
Time position7 hours
MaterialPlastic
