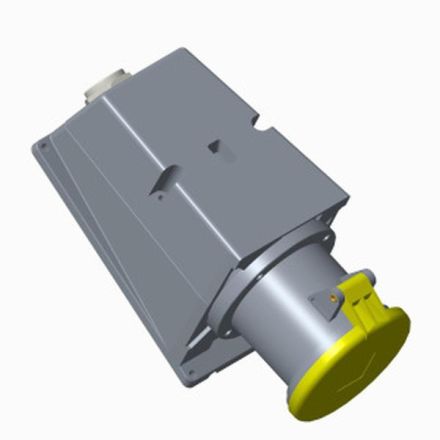

ABB Stotz-Kontakt 363RS4, surface-mounted wall socket, 63 A, IP44 4h, 3P+E, 2CMA167494R1000

In stock
SKU: 459638
€217.43
Into a basketIn the basketGo

Overview

Industrial connectors are the solution for industrial sectors with high demands on safety, durability, reliability and cost savings for the end user. The range consists of IP44 and IP67 devices from 16 A to 125 A, from simple plugs to flexible customer-specific combination solutions. The products follow an ergonomic and robust design, are quick to assemble and have a long service life. The range covers all current clock positions. The connectors are approved according to IEC 60 309-1, 2- and -4. Country-specific approvals are also available on request.

PropertyValue
IEC current:63 A
Number of poles:4
Protection class (IP):IP44
Identification colour:yellow
Connection technology:screw terminal
Design:surface-mounted
Voltage according to EN 60309-2:110 V (50+60 Hz) yellow
Time setting:4 h
Material:plastic
Mounting type:External mounting
Military version:no
Insulated installation:yes
UL/CSA current rating (if UL version required):60 A
RAL number:7001
Cable entry:other

Characteristics

HAB363RS4
ManufacturerABB Stotz-Kontakt
HAN2CMA167494R1000
GTIN7392696674942
Connection technologyScrew terminal
VersionSurface-mounted
Mounting typeExternal fastening
IEC current63 A
Insulated installationYes
Cable entryOther
Identification colorYellow
Military versionNo
Number of poles4
RAL number7001
IP protection)IP44
Voltage according to EN 60309-2110 V (50+60 Hz) yellow
UL/CSA current rating (if UL version required)60A
Time position4 hours
MaterialPlastic
