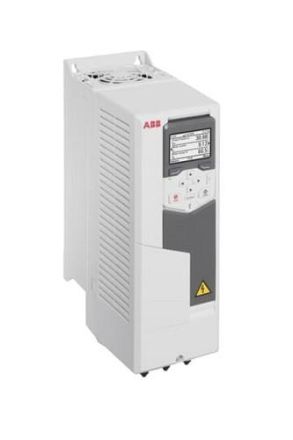

ABB Stotz-Kontakt 3AXD50000038951 ACS580-01-07A3-4 Frequency converter

ABB Stotz-Kontakt 3AXD50000038951 ACS580-01-07A3-4 Frequency converter

In stock

SKU: 892683

Price on request

€916.65

€0

Overview

ACS580 frequency converter, 380-480 V, IP21, A new generation of wall-mounted frequency converters simplifies your processes and control tasks with efficiency and precision. This frequency converter can be used in a variety of industrial applications. Setting up and commissioning are extremely easy. The essential functions are integrated as standard. Additional hardware is therefore not required, which makes selecting the right drive much easier. The ACS580 is ready to connect and can immediately control your pumps, fans, conveyor systems, mixers and other applications with variable or constant torque

Property	Value
Protection class (IP):	IP21
Mains frequency:	50/60 Hz
Nominal output current:	7.2 A
Max. Output voltage:	480 V
Mains voltage:	380 to 480 V
Number of input phases:	3
Number of HW interfaces in parallel:	2
Number of HW interfaces other:	2
Supports protocol for data highway:	no
Number of HW interfaces serial RS-485:	1
4-quadrant operation possible:	no
Max. Output frequency:	500 Hz
Use in industrial areas permitted:	yes
With optical interface:	no
Height:	373 mm
Supports protocol for LON:	no
Width:	125 mm
Relative symmetrical mains voltage tolerance:	10 %
Supports protocol for AS-Interface Safety at Work:	no
Depth:	223 mm
Type of Inverter:	U-converter
Brake chopper integrated:	no
Max. delivered power with linear load at rated output voltage:	3 kW
Supports protocol for TCP/IP:	yes
Supports protocol for DeviceNet:	yes
Supports protocol for PROFINET IO:	yes
Supports protocol for PROFIBUS:	yes
Supports protocol for EtherNet/IP:	yes
Supports protocol for INTERBUS-Safety:	no
Supports protocol for SUCONET:	no
Supports protocol for CAN:	yes
Supports protocol for KNX:	no
Use in residential and commercial areas permitted:	yes
Supports protocol for INTERBUS:	no
Supports protocol for other bus systems:	yes
Supports protocol for ASI:	no
Supports protocol for SafetyBUS p:	no
Supports protocol for Modbus:	yes
With control element:	yes
Supports protocol for PROFIsafe:	no
Supports protocol for DeviceNet Safety:	yes
Relative symmetrical mains frequency tolerance:	5 %
Supports protocol for SERCOS:	no
Number of output phases:	3
Supports protocol for PROFINET CBA:	no
Supports protocol for Foundation Fieldbus:	no
Max. delivered power at square. Load at rated output voltage:	3 kW
Number of USB hardware interfaces:	1
With PC connection:	yes
Number of analog outputs:	2
Number of analog inputs:	2
Number of digital outputs:	3
Number of digital inputs:	6
Supports protocol for BACnet:	no
Protection class (NEMA):	1
