ABB Stotz-Kontakt 4NWP100164R0002 10 kVA 3Min battery module

In stock

SKU: 811562

Price on request

€3,507.99

€0

Overview

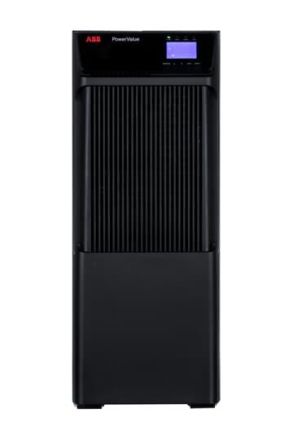

PV11T G2 10kVA B2, online UPS, classification: VFI-SS-111, power 10000 VA / 10000 W., tower, net dimensions: 225x589x452 (WxHxD in mm), gross dimensions: 397x730x598 (WxHxD in mm), net weight: 70.9 kg, gross weight: 73.8 kg, bridging time at full / half load in minutes:

Property	Value
Output active power:	10000 W
Output apparent power:	10000 VA
Bridge time full load:	4 min
Weight:	70.9 kg
Input voltage:	208 to 240 V
Output voltage:	208 to 240 V
Network management capable:	yes
Height:	589 mm
Width:	225 mm
Depth:	452 mm
UPS technology:	Online
Design:	Freestanding device
Automatic switch-off function:	yes
Efficiency in Eco mode:	98 %
Potential-free switching contact:	yes
Max. Output voltage distortion (linear load):	1 %
Output power factor:	1
Number of output terminals Fixed:	1
Number of secondary phases:	1
Number of primary phases:	1
Input terminal:	Fixed
SNMP:	yes
Voltage type:	AC
Secondary frequency:	50 to 60 Hz
Overall efficiency:	94.2 %
Primary frequency:	50 to 60 Hz
Interface type:	RS-232
