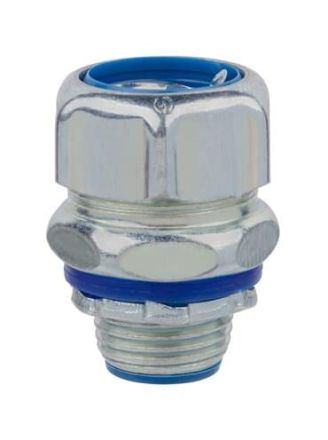

ABB Stotz-Kontakt 7TAD012100R0007 5333 metal straight screw connection

ABB Stotz-Kontakt 7TAD012100R0007 5333 metal straight screw connection

In stock

SKU: 540167

Price on request

€17.51

€0

Overview

Straight metal screw connection, for liquid-tight metal protective hoses, made of galvanized cast steel with chrome-plated surface, inner sleeve made of polyamide, nominal size 3/4 inch or 25 mm, threaded connection NPT 3/4 inch, protection class IP67

Property	Value
Protection class (IP) depending on hose:	670
Nominal diameter:	25 mm
Smallest inside diameter of hose:	20 mm
Threaded connection size:	other
Perm. in combination with protective hose DIN EN 61386-23:	no
Total length:	41 mm
Total height:	42 mm
Thread length:	14 mm
Rotatable thread:	no
Nominal size in inches:	3/4 inch
Design:	straight
Construction:	external thread
One-piece:	no
Perm. in combination with protective hose UL:	no
Approved in combination with protective hose CSA:	no
Approved in combination with protective hose FI:	no
Material of the housing:	steel
Surface:	other
Thread type:	NPT
Connection type of screw connection to the housing:	thread
With ground connection:	no
