ABB Stotz-Kontakt 7TAD012100R0010 5334-TB screw connection

In stock

SKU: 768606

Price on request

€22.56

€0

Overview

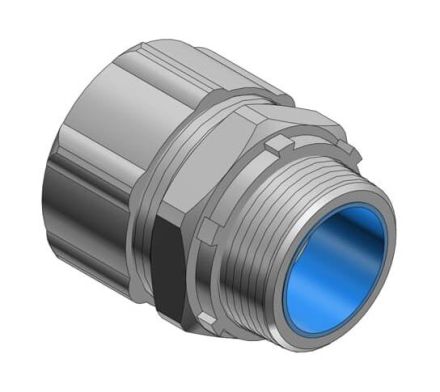

Straight metal screw connection, for liquid-tight metal protective hoses, made of galvanized cast steel with chrome-plated surface, inner sleeve made of polyamide, nominal size 1 inch or 32 mm, threaded connection NPT 1 inch, protection class IP67

Property	Value
Protection class (IP) depending on hose:	670
Nominal diameter:	32 mm
Smallest inside diameter of hose:	25 mm
Threaded connection size:	other
Perm. in combination with protective hose DIN EN 61386-23:	no
Total length:	52 mm
Total height:	48 mm
Thread length:	19 mm
Rotatable thread:	no
Nominal size in inches:	1 inch
Design:	straight
Construction:	external thread
One-piece:	no
Perm. in combination with protective hose UL:	no
Approved in combination with protective hose CSA:	no
Approved in combination with protective hose FI:	no
Material of the housing:	steel
Surface:	other
Thread type:	NPT
Connection type of screw connection to the housing:	thread
With ground connection:	no
