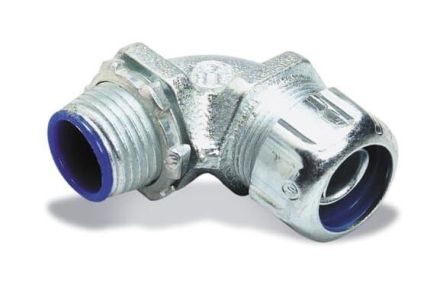

ABB Stotz-Kontakt 7TAD012170R0014 5356 90° metal angled 1 1/2' screw connection

In stock
SKU: 768609
€124.69
Into a basketIn the basketGo

Overview

90° - angled metal screw connection, for liquid-tight metal protective hoses, made of galvanized cast steel with chrome-plated surface, inner sleeve made of polyamide, nominal size 1 1/2 inch or 50 mm, thread connection NPT 1 1/2 inch, protection class

PropertyValue
Protection class (IP) depending on hose:670
Nominal diameter:50 mm
Smallest inside diameter of hose:38.5 mm
Threaded connection size:other
Perm. in combination with protective hose DIN EN 61386-23:no
Rotatable thread:no
Nominal size in inches:1 1/2 inch
Design:90° angle
Construction:External thread
One-piece:no
Approved in combination with protective hose UL:no
Approved in combination with protective hose CSA:no
Approved in combination with protective hose FI:no
Material of the housing:other
Surface:chrome-plated
Thread type:NPT
Connection type of screw connection to the housing:thread
With earth connection:no

Characteristics

One-pieceNo
Connection type of screw connection to the housingThread
Smallest inner diameter of the hose38.5 mm
Approved in combination with protective hose DIN EN 61386-23No
Protection class (IP) depends on hose670
With earth connectionNo
Approved in combination with protective hose CSANo
HAB5356 90° metal angled 1 1/2'
Minimal order10 pieces
ManufacturerABB Stotz-Kontakt
HAN7TAD012170R0014
GTIN5414363075813
Version90° angle
DesignExternal thread
Rotating threadNo
Thread connection sizeOther
Thread typeNPT
Nominal diameter50 mm
Nominal size in inches1 1/2 inch
SurfaceChrome-plated
Housing materialOther
