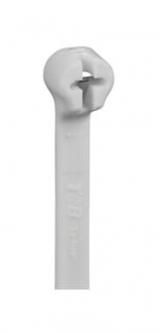

ABB Stotz-Kontakt 7TAG009270R0051 Standard 400x4.8mm 220N white cable ties

In stock
SKU: 763671
€0.41
Into a basketIn the basketGo

Overview

The white Ty-Rap steel nose cable tie made of polyamide 6.6 is available in several lengths and widths and different tensile strengths. This series is mainly suitable for indoor applications. The corrosion-resistant, anti-magnetic steel nose made of type 316 stainless steel in the cable tie head guarantees the strongest and most secure hold that can be found on the market. The powerful and reliable Ty-Rap can be used in the most adverse conditions such as vibration, heat or cold. The rounded edges and contours of the head and the tie ensure user-friendly handling and prevent the insulation of the cables and lines from being damaged by sharp edges or serrations. In addition, the smooth body without ratchet teeth or grooves reduces the number of overstressed areas. The light nubs on the inside of the band ensure that the tie sits firmly on the cable bundle. A large selection of accessories complements the range.

PropertyValue
Band width:4.7 mm
Band length:361 mm
Max. Bundle diameter:102 mm
Halogen-free:no
Band closure:steel nose
UL approval:no
Color:white
Material:plastic
Band thickness:1.1 mm
Removable closure:no
Labeling area:without
Design:internally toothed
UV-stable according to ASTM D6779:no
VG approval:no
MIL approval:no
Min. holding force:220 N
Material quality:Polyamide (PA)
Transparent:no
Reflective (luminous color):no
Operating temperature:850 °C

Characteristics

HABStandard 400x4,8mm 220N white
Minimal order1000 Pieces
ManufacturerABB Stotz-Kontakt
HAN7TAG009270R0051
GTIN5415022496314
VersionInternally toothed
Strip thickness1.1 mm
Band length361 mm
Band closureSteelnose
Labeling areaWithout
Operating temperatur850 °C
Width of the band4.7 mm
ColorWhite
Halogen freeNo
Removable closureNo
MIL approvalNo
Max. bundle diameter102 mm
Min. holding force220N
Reflective (luminous color)No
TransparentNo
UL approvalNo
UV-stable according to ASTM D6779No
VG approvalNo
MaterialPlastic
Material qualityPolyamide (PA)
