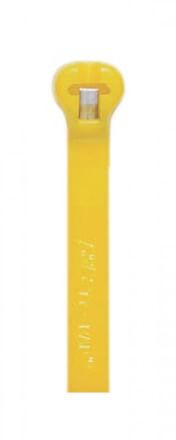

ABB Stotz-Kontakt 7TAG009370R0034 TY29M-4 771x6.9mm yellow cable ties

In stock
SKU: 540756
€1.44
Into a basketIn the basketGo

Overview

The yellow Ty-Rap steel nose cable tie made of polyamide 6.6 is available in several lengths and widths and different tensile strengths. This series is mainly suitable for indoor applications. The corrosion-resistant, anti-magnetic steel nose made of type 316 stainless steel in the cable tie head guarantees the strongest and most secure hold that can be found on the market. The powerful and reliable Ty-Rap can be used in the most adverse conditions such as vibration, heat or cold. The rounded edges and contours of the head and the tie ensure user-friendly handling and prevent the insulation of the cables and lines from being damaged by sharp edges or serrations. In addition, the smooth body without ratchet teeth or grooves reduces the number of overstressed areas. The light nubs on the inside of the band ensure that the tie sits firmly on the cable bundle. A large selection of accessories complements the range.

PropertyValue
Band width:6.9 mm
Band length:770.6 mm
Max. Bundle diameter:229 mm
Halogen-free:no
Band closure:steel nose
UL approval:no
Color:yellow
Material:plastic
Band thickness:1.5 mm
Removable closure:no
Labeling area:without
Design:internally toothed
Fastening type:without
UV-stable according to ASTM D6779:no
VG approval:no
MIL approval:no
Min. holding force:534 N
Material quality:Polyamide (PA)
Surface:untreated
Transparent:no
Reflective (luminous color):no
Operating temperature:850 °C

Characteristics

HABTY29M-4 771x6,9mm yellow
Minimal order5000 Pieces
ManufacturerABB Stotz-Kontakt
HAN7TAG009370R0034
GTIN5414363063742
VersionInternally toothed
Strip thickness1.5 mm
Band length770.6 mm
Band closureSteelnose
Mounting typeWithout
Labeling areaWithout
Operating temperatur850 °C
Width of the band6.9 mm
ColorYellow
Halogen freeNo
Removable closureNo
MIL approvalNo
Max. bundle diameter229 mm
Min. holding force534 N
SurfaceUntreated
Reflective (luminous color)No
TransparentNo
UL approvalNo
UV-stable according to ASTM D6779No
VG approvalNo
MaterialPlastic
Material qualityPolyamide (PA)
