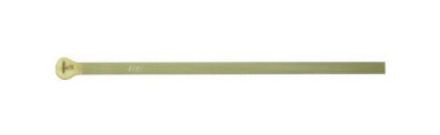

ABB Stotz-Kontakt 7TAG009590R0005 TYH253M 290x4.8mm natural cable ties

In stock
SKU: 540689
€0.41
Into a basketIn the basketGo

Overview

The heat-stabilized version of the Ty-Rap steel nose cable tie made of polyamide 6.6 is ideal for applications in higher temperature ranges. The corrosion-resistant, anti-magnetic steel nose made of type 316 stainless steel in the cable tie head guarantees the strongest and most secure hold that can be found on the market. The powerful and reliable Ty-Rap can be used under the most adverse conditions such as vibration, heat or cold. The rounded edges and contours of the head and the tie ensure user-friendly handling and prevent the insulation of the cables and lines from being damaged by sharp edges or serrations. In addition, the smooth body without ratchet teeth or grooves reduces the number of overstressed areas. The light nubs on the inside of the band ensure that the tie sits firmly on the cable bundle. A large selection of accessories complements the range.

PropertyValue
Band width:4.8 mm
Band length:294.6 mm
Max. Bundle diameter:76.2 mm
Halogen-free:no
Band closure:steel nose
UL approval:no
Color:green
Material:plastic
Band thickness:1.1 mm
Removable closure:no
Labeling area:without
Design:internally toothed
Fastening type:without
UV-stable according to ASTM D6779:no
VG approval:no
MIL approval:no
Min. holding force:220 N
Material quality:Polyamide (PA)
Surface:untreated
Transparent:no
Reflective (luminous color):no
Operating temperature:1050 °C

Characteristics

HABTYH253M 290x4,8mm natural
Minimal order1000 Pieces
ManufacturerABB Stotz-Kontakt
HAN7TAG009590R0005
GTIN5414363067405
VersionInternally toothed
Strip thickness1.1 mm
Band length294.6 mm
Band closureSteelnose
Mounting typeWithout
Labeling areaWithout
Operating temperatur1050 °C
Width of the band4.8 mm
ColorGreen
Halogen freeNo
Removable closureNo
MIL approvalNo
Max. bundle diameter76.2 mm
Min. holding force220N
SurfaceUntreated
Reflective (luminous color)No
TransparentNo
UL approvalNo
UV-stable according to ASTM D6779No
VG approvalNo
MaterialPlastic
Material qualityPolyamide (PA)
ABB Stotz-Kontakt 7TAG009590R0005 TYH253M 290x4.8mm natural cable ties
ABB Stotz-Kontakt 7TAG009590R0005 TYH253M 290x4.8mm natural cable ties
