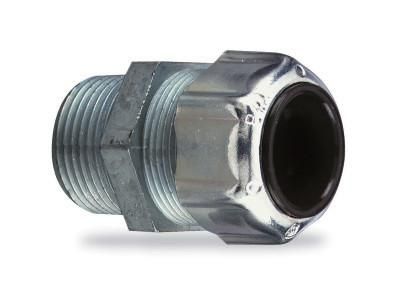

ABB Stotz-Kontakt 7TBD105230R0002 2522 straight 9.5-12.7mm cable gland

In stock

SKU: 768143

Price on request

€3.32

€0

Overview

Straight metal cable gland for cable diameter 9.5 - 12.7 mm, thread connection NPT 1/2 inch, made of galvanized steel, sealing material neoprene, protection class IP 65

Property	Value
Suitable for cable diameter:	9.5 mm
Protection class (IP):	IP65
Operating temperature:	00 °C
Halogen-free:	no
Thread length:	15.9 mm
Thread type:	NPT
Design:	straight
Color:	natural
Material:	metal
With strain relief:	no
Surface:	galvanized/electrolytically galvanized
Type of seal:	Sealing ring
Impact resistant:	yes
Bending protection:	yes
Material quality:	other
Nominal thread size in inches NPT/gas pipe thread:	1/2 inch
Fiberglass reinforced:	no
With lock nut:	no
Multiple sealing insert:	no
Flat cable gland:	no
Dividable gland:	no
Explosion-tested version:	no
Snaps into opening:	no
For armored cables:	no
EMC version:	no
Shielded:	no
