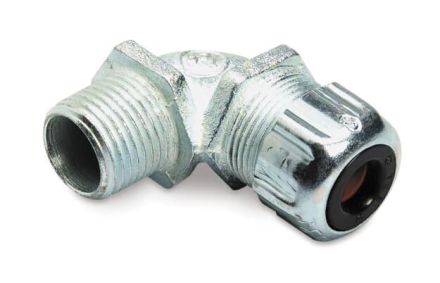

ABB Stotz-Kontakt 7TBD105250R0007 2257 metal 90° angled 24.9-37.7mm cable gland

In stock

SKU: 768607

Price on request

€29.96

€0

Overview

90° angled metal cable gland for cable diameters 24.9 - 37.7 mm, thread connection NPT 1 1/4 inch, made of galvanized cast iron, sealing material neoprene, protection class IP65

Property	Value
Suitable for cable diameter:	226 mm
Protection class (IP):	IP65
Operating temperature:	1050 °C
Halogen-free:	no
Thread length:	19.8 mm
Thread type:	NPT
Design:	90° angle
Color:	natural
Material:	metal
With Strain relief:	no
Surface:	galvanized/electrolytically galvanized
Type of seal:	sealing ring
Impact resistant:	yes
Bending protection:	yes
Material quality:	other
Nominal thread size in inches NPT/gas pipe thread:	1 inch
Fiberglass reinforced:	no
With lock nut:	no
Multiple sealing insert:	no
Flat cable gland:	no
Dividable gland:	no
Explosion-tested version:	no
Snaps into opening:	no
For armored cables:	no
EMC version:	no
Shielded:	no
