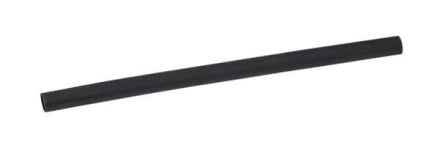

ABB Stotz-Kontakt 7TCA017400R0001 TBW1100 shrink tubing

In stock
SKU: 767677
€32.20
Into a basketIn the basketGo

Overview

TBW, shrink tubing for low voltage applications in continuous use (600V, 90 degrees C), thick-walled, shrink ratio 3:1, thermoplastic adhesive coating, inner diameter before shrinking 27.9 mm, black, shrink temperature > +120 degrees C, length 2.4

PropertyValue
Nominal diameter in inches:other
Wall thickness after shrinking:3 mm
Inner diameter before shrinking:27.9 mm
Inner diameter after shrinking:8.9 mm
Length:2.4 m
Operating temperature:1100 °C
Design:thick-walled
Color:black
Material:Polyolefins (PO-X)
With inner adhesive:no
Shrinkage ratio:3:1
Printable:no
UL approval:no
Halogen free:no
Type:Heat shrink

Characteristics

HABTBW1100
Minimal order2 pieces
ManufacturerABB Stotz-Kontakt
HAN7TCA017400R0001
GTIN5414363109594
VersionThick-walled
PrintableNo
Operating temperatur1100°C
ColorBlack
Halogen freeNo
Inner diameter after shrinkage8.9 mm
Inner diameter before shrinking27.9 mm
Length2.4m
With inner adhesiveNo
Nominal diameter in inchesOther
Shrinkage rate3:1
TypeHeat shrink
UL approvalNo
Wall thickness after shrinkage3 mm
MaterialPolyolefins (PO-X)
ABB Stotz-Kontakt 7TCA017400R0001 TBW1100 shrink tubing
ABB Stotz-Kontakt 7TCA017400R0001 TBW1100 shrink tubing
