ABB Stotz-Kontakt 7TCA296000R0686 AL21/PG16/CS90/BL screw connection

ABB Stotz-Kontakt 7TCA296000R0686 AL21/PG16/CS90/BL screw connection

In stock

SKU: 767066

Price on request

€12.78

€0

Into a basketIn the basketGo

Overview

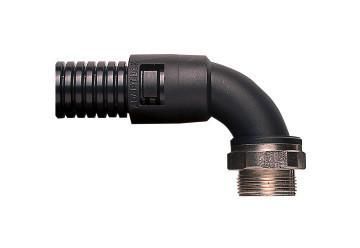

AL21/PG16/CS90/BL Type CS90, Nm: 21, screw connection/90° bend made of polyamide 66, rotating external thread (nickel-plated brass)

Property	Value
Nominal diameter:	21
Nominal size in inches:	1/2 inch
Protection class (IP) :	IP66
Design:	90° angle
Rotatable thread:	no
Design:	external thread
Connection type:	snap connection
Thread type:	other
Thread connection size:	PG16
Thread length:	11.2
Material:	Polyamide (PA)
Color:	black
Approved in combination with protective hose UR:	no
Approved in combination with protective hose DIN EN 61386-23:	no

Characteristics

Approved in combination with protective hose DIN EN 61386-23No

Approved in combination with protective hose URNo

HABAL21/PG16/CS90/BL

Minimal order10 pieces

Manufacturer

HAN7TCA296000R0686

GTIN5020963007118

Version90° angle

DesignExternal thread

Rotating threadNo

Color

Thread connection sizePG16

Thread typeOther

Thread length11.2

Nominal diameter21

Nominal size in inches1/2 inch

Connection typeSnap connection

MaterialPolyamide (PA)
