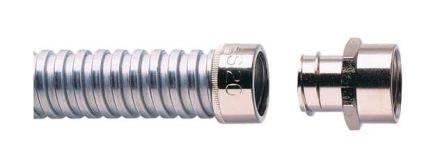

ABB Stotz-Kontakt 7TCA296010R0078 S20/M20/F screw connection

In stock
SKU: 768091
€4.52
Into a basketIn the basketGo

Overview

S20/M20/F Type F, N dimension: 20, straight screw connection, thread: M20, nickel-plated brass

PropertyValue
Nominal diameter:20 mm
Largest outside diameter of the hose:20 mm
Smallest inside diameter of the hose:15.3 mm
Thread connection size:M20 x 1.5
Perm. in combination with protective hose DIN EN 61386-23:no
Total length:27.2 mm
Total height:21 mm
Thread length:11 mm
Rotatable thread:no
Nominal size in inches:1/2 inch
Design:straight
Construction:Internal thread
One-piece:no
Perm. in combination with protective hose UL:no
Approved in combination with protective hose CSA:no
Approved in combination with protective hose FI:no
Material of the housing:brass
Surface:nickel-plated
Operating temperature:3000 °C
Thread type:metric
Connection type of the screw connection to the housing:thread
With earth connection:no

Characteristics

One-pieceNo
Total height21 mm
Connection type of screw connection to the housingThread
Smallest inner diameter of the hose15.3 mm
Approved in combination with protective hose DIN EN 61386-23No
With earth connectionNo
Approved in combination with protective hose CSANo
HABS20/M20/F
Minimal order10 pieces
ManufacturerABB Stotz-Kontakt
HAN7TCA296010R0078
GTIN5020963004308
VersionStraight
DesignInner thread
Rotating threadNo
Operating temperature3000°C
Overall length27.2 mm
Thread connection sizeM20x1.5
Thread typeMetric
Thread length11 mm
Nominal diameter20 mm
Nominal size in inches1/2 inch
SurfaceNickel-plated
Housing materialBrass
